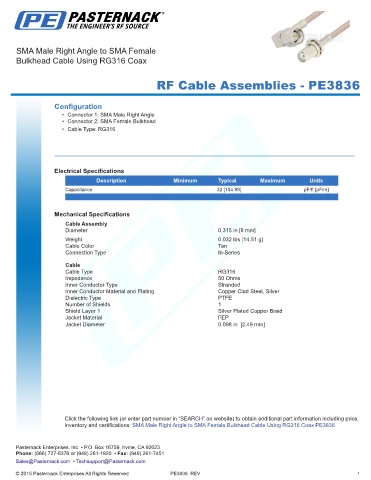

SMA Male Right Angle to SMA Female
Bulkhead Cable Using RG316 Coax

RF Cable Assemblies - PE3836

Configuration
• Connector 1: SMA Male Right Angle
• Connector 2: SMA Female Bulkhead
• Cable Type: RG316

.
Electrical Specifications
Description Minimum Typical Maximum Units
Capacitance 32 [104.99] pF/ft [pF/m]
.

Mechanical Specifications
Cable Assembly
Diameter 0.315 in [8 mm]
.
Weight 0.032 lbs [14.51 g]
Cable Color Tan
Connection Type In-Series

Cable
Cable Type RG316
Impedance 50 Ohms
Inner Conductor Type Stranded
Inner Conductor Material and Plating Copper Clad Steel, Silver
Dielectric Type PTFE
Number of Shields 1
Shield Layer 1 Silver Plated Copper Braid
Jacket Material FEP
Jacket Diameter 0.098 in [2.49 mm]

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: SMA Male Right Angle to SMA Female Bulkhead Cable Using RG316 Coax PE3836

PE3836 REV 1
