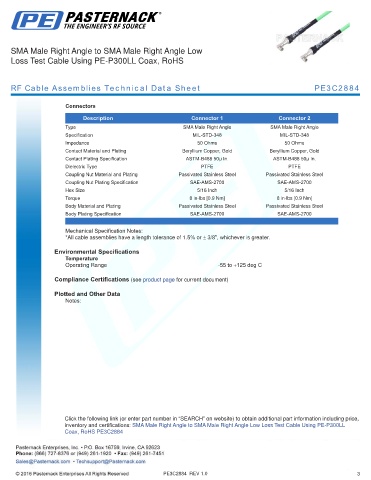

SMA Male Right Angle to SMA Male Right Angle Low
Loss Test Cable Using PE-P300LL Coax, RoHS

RF Cable Assemblies Technical Data Sheet PE3C2884

Connectors

Description Connector 1 Connector 2
Type SMA Male Right Angle SMA Male Right Angle
Specification MIL-STD-348 MIL-STD-348
Impedance 50 Ohms 50 Ohms
Contact Material and Plating Beryllium Copper, Gold Beryllium Copper, Gold
Contact Plating Specification ASTM-B488 50µ In. ASTM-B488 50µ In.
Dielectric Type PTFE PTFE
Coupling Nut Material and Plating Passivated Stainless Steel Passivated Stainless Steel
Coupling Nut Plating Specification SAE-AMS-2700 SAE-AMS-2700
Hex Size 5/16 Inch 5/16 Inch
Torque 8 in-lbs [0.9 Nm] 8 in-lbs [0.9 Nm]
Body Material and Plating Passivated Stainless Steel Passivated Stainless Steel
Body Plating Specification SAE-AMS-2700 SAE-AMS-2700
.
Mechanical Specification Notes:
*All cable assemblies have a length tolerance of 1.5% or ± 3/8”, whichever is greater.

Environmental Specifications
Temperature
Operating Range -55 to +125 deg C

Compliance Certifications (see product page for current document)

Plotted and Other Data
Notes:

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: SMA Male Right Angle to SMA Male Right Angle Low Loss Test Cable Using PE-P300LL
Coax, RoHS PE3C2884

PE3C2884 REV 1.0 3
