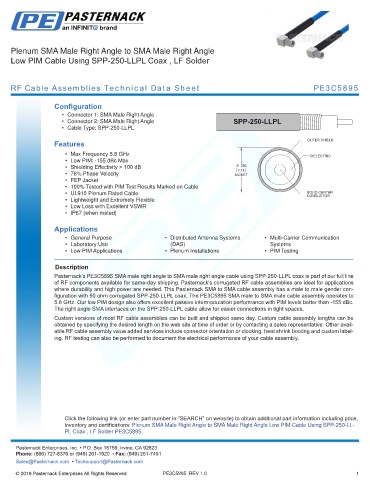

Plenum SMA Male Right Angle to SMA Male Right Angle
Low PIM Cable Using SPP-250-LLPL Coax , LF Solder

RF Cable Assemblies Technical Data Sheet PE3C5895

Configuration
• Connector 1: SMA Male Right Angle
• Connector 2: SMA Male Right Angle SPP-250-LLPL
• Cable Type: SPP-250-LLPL

Features OUTER SHIELD
• Max Frequency 5.8 GHz DIELECTRIC
• Low PIM: -155 dBc Max
• Shielding Effectivity > 100 dB .280
7.11
• 76% Phase Velocity JACKET
• FEP Jacket
• 100% Tested with PIM Test Results Marked on Cable
• UL910 Plenum Rated Cable SOLID CENTER
CONDUCTOR
• Lightweight and Extremely Flexible
• Low Loss with Excellent VSWR
• IP67 (when mated)

Applications
• General Purpose • Distributed Antenna Systems • Multi-Carrier Communication
• Laboratory Use (DAS) Systems
• Low PIM Applications • Plenum Installations • PIM Testing
.
Description
Pasternack’s PE3C5895 SMA male right angle to SMA male right angle cable using SPP-250-LLPL coax is part of our full line
of RF components available for same-day shipping. Pasternack’s corrugated RF cable assemblies are ideal for applications
where durability and high power are needed. This Pasternack SMA to SMA cable assembly has a male to male gender con-
figuration with 50 ohm corrugated SPP-250-LLPL coax. The PE3C5895 SMA male to SMA male cable assembly operates to
5.8 GHz. Our low PIM design also offers excellent passive intermodulation performance with PIM levels better than -155 dBc.
The right angle SMA interfaces on the SPP-250-LLPL cable allow for easier connections in tight spaces.
Custom versions of most RF cable assemblies can be built and shipped same day. Custom cable assembly lengths can be
obtained by specifying the desired length on the web site at time of order or by contacting a sales representative. Other avail-
able RF cable assembly value added services include connector orientation or clocking, heat shrink booting and custom label-
ing. RF testing can also be performed to document the electrical performance of your cable assembly.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: Plenum SMA Male Right Angle to SMA Male Right Angle Low PIM Cable Using SPP-250-LL-
PL Coax , LF Solder PE3C5895 Pasternack does not make -
any representation or warranty regarding the suitability of the part described herein for any particular purpose, and Pasternack does not assume any liability arising out of the use of any part or documentation.

PE3C5895 REV 1.0 1
