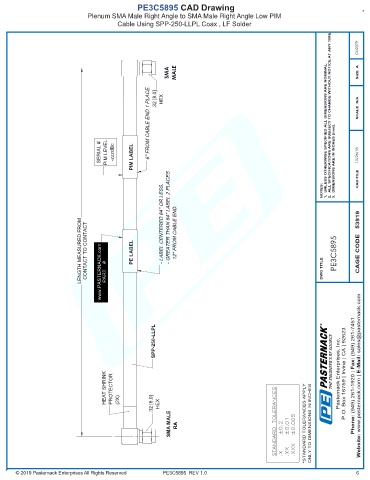

PE3C5895 CAD Drawing
Plenum SMA Male Right Angle to SMA Male Right Angle Low PIM
Cable Using SPP-250-LLPL Coax , LF Solder
CN2379
SMA MALE SIZE A
6'' FROM CABLE END 1 PLACE. .32 [8.0] HEX 1. UNLESS OTHERWISE SPECIFIED ALL DIMENSIONS ARE NOMINAL. 2. ALL SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE AT ANY TIME. SCALE N/A
SERIAL # PIM LEVEL -zzzdBc PIM LABEL NOTES: 3. DIMENSIONS ARE IN INCHES [mm]. 12/26/18 CAD FILE
LENGTH MEASURED FROM CONTACT TO CONTACT www.PASTERNACK.com PART # PE LABEL - LABEL CENTERED 84'' OR LESS. - GREATER THAN 84'' LABEL 2 PLACES 12'' FROM CABLE END. DWG TITLE PE3C5895 CAGE CODE 53919
SPP-250-LLPL R THE ENGINEER'S RF SOURCE
P.O. Box 16759 | Irvine | CA | 92623
Pasternack Enterprises, Inc.
HEAT SHRINK PROTECTOR (2X) .32 [8.0] HEX Pasternack does not make Phone: (949) 261-1920 | Fax: (949) 261-7451 Website: www.pasternack.com | E-Mail: sales@pasternack.com
SMA MALE STANDARD TOLERANCES *STANDARD TOLERANCES APPLY ONLY TO DIMENSIONS IN INCHES -
.XXX ±0.005
.XX ±0.01
.X ±0.2
RA
any representation or warranty regarding the suitability of the part described herein for any particular purpose, and Pasternack does not assume any liability arising out of the use of any part or documentation.
PE3C5895 REV 1.0 6
