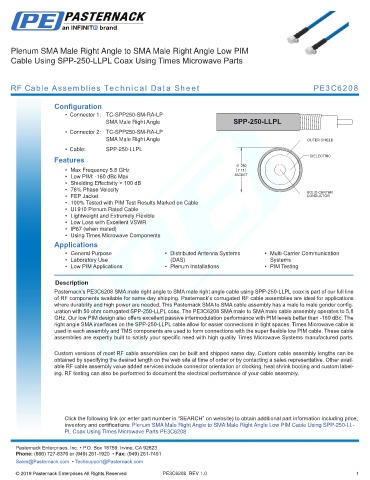

Plenum SMA Male Right Angle to SMA Male Right Angle Low PIM
Cable Using SPP-250-LLPL Coax Using Times Microwave Parts

RF Cable Assemblies Technical Data Sheet PE3C6208

Configuration
• Connector 1: TC-SPP250-SM-RA-LP
SMA Male Right Angle SPP-250-LLPL
• Connector 2: TC-SPP250-SM-RA-LP
SMA Male Right Angle OUTER SHIELD
• Cable: SPP-250-LLPL
Features DIELECTRIC
.280
• Max Frequency 5.8 GHz 7.11
• Low PIM: -160 dBc Max JACKET
• Shielding Effectivity > 100 dB
• 76% Phase Velocity SOLID CENTER
• FEP Jacket CONDUCTOR
• 100% Tested with PIM Test Results Marked on Cable
• UL910 Plenum Rated Cable
• Lightweight and Extremely Flexible
• Low Loss with Excellent VSWR
• IP67 (when mated)
• Using Times Microwave Components
Applications

• General Purpose • Distributed Antenna Systems • Multi-Carrier Communication
• Laboratory Use (DAS) Systems
• Low PIM Applications • Plenum Installations • PIM Testing
.
Description
Pasternack’s PE3C6208 SMA male right angle to SMA male right angle cable using SPP-250-LLPL coax is part of our full line
of RF components available for same-day shipping. Pasternack’s corrugated RF cable assemblies are ideal for applications
where durability and high power are needed. This Pasternack SMA to SMA cable assembly has a male to male gender config-
uration with 50 ohm corrugated SPP-250-LLPL coax. The PE3C6208 SMA male to SMA male cable assembly operates to 5.8
GHz. Our low PIM design also offers excellent passive intermodulation performance with PIM levels better than -160 dBc. The
right angle SMA interfaces on the SPP-250-LLPL cable allow for easier connections in tight spaces. Times Microwave cable is
used in each assembly and TMS components are used to form connections with the super flexible low PIM cable. These cable
assemblies are expertly built to satisfy your specific need with high quality Times Microwave Systems manufactured parts.

Custom versions of most RF cable assemblies can be built and shipped same day. Custom cable assembly lengths can be
obtained by specifying the desired length on the web site at time of order or by contacting a sales representative. Other avail-
able RF cable assembly value added services include connector orientation or clocking, heat shrink booting and custom label-
ing. RF testing can also be performed to document the electrical performance of your cable assembly.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: Plenum SMA Male Right Angle to SMA Male Right Angle Low PIM Cable Using SPP-250-LL-
PL Coax Using Times Microwave Parts PE3C6208 Pasternack does not make -
any representation or warranty regarding the suitability of the part described herein for any particular purpose, and Pasternack does not assume any liability arising out of the use of any part or documentation.
