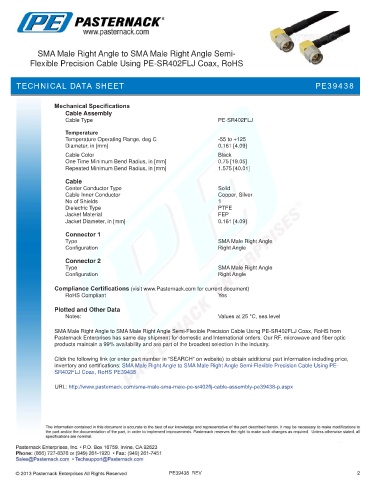

SMA Male Right Angle to SMA Male Right Angle Semi-
Flexible Precision Cable Using PE-SR402FLJ Coax, RoHS

TECHNICAL D PE39438
TECHNICAL DATA SHEETATA SHEET

Mechanical Specifications
Cable Assembly
Cable Type PE-SR402FLJ

Temperature
Temperature Operating Range, deg C -55 to +125
Diameter, in [mm] 0.161 [4.09]
.
Cable Color Black
One Time Minimum Bend Radius, in [mm] 0.75 [19.05]
Repeated Minimum Bend Radius, in [mm] 1.575 [40.01]

Cable
Center Conductor Type Solid
Cable Inner Conductor Copper, Silver
No of Shields 1
Dielectric Type PTFE
Jacket Material FEP
Jacket Diameter, in [mm] 0.161 [4.09]

Connector 1
Type SMA Male Right Angle
Configuration Right Angle

Connector 2
Type SMA Male Right Angle
Configuration Right Angle

Compliance Certifications (visit www.Pasternack.com for current document)
RoHS Compliant Yes

Plotted and Other Data
Notes: Values at 25 °C, sea level

SMA Male Right Angle to SMA Male Right Angle Semi-Flexible Precision Cable Using PE-SR402FLJ Coax, RoHS from
Pasternack Enterprises has same day shipment for domestic and International orders. Our RF, microwave and fiber optic
products maintain a 99% availability and are part of the broadest selection in the industry.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: SMA Male Right Angle to SMA Male Right Angle Semi-Flexible Precision Cable Using PE-
SR402FLJ Coax, RoHS PE39438

URL: http://www.pasternack.com/sma-male-sma-male-pe-sr402flj-cable-assembly-pe39438-p.aspx

PE39438 REV 2
