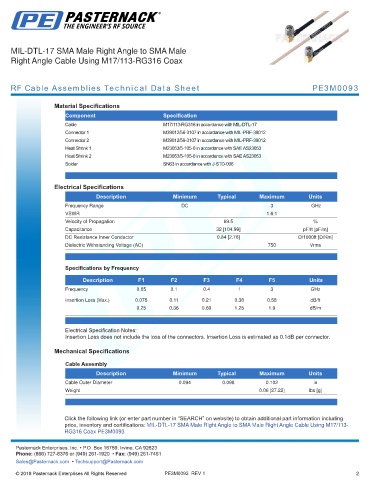

MIL-DTL-17 SMA Male Right Angle to SMA Male
Right Angle Cable Using M17/113-RG316 Coax

RF Cable Assemblies Technical Data Sheet PE3M0093

Material Specifications
Component Specification
Cable M17/113-RG316 in accordance with MIL-DTL-17
Connector 1 M39012/56-3107 in accordance with MIL-PRF-39012
Connector 2 M39012/56-3107 in accordance with MIL-PRF-39012
Heat Shrink 1 M23053/5-105-0 in accordance with SAE AS23053
Heat Shrink 2 M23053/5-105-0 in accordance with SAE AS23053
Solder SN63 in accordance with J-STD-006

.
Electrical Specifications
Description Minimum Typical Maximum Units
Frequency Range DC 3 GHz
VSWR 1.6:1
Velocity of Propagation 69.5 %
Capacitance 32 [104.99] pF/ft [pF/m]
DC Resistance Inner Conductor 0.84 [2.76] Ω/1000ft [Ω/Km]
Dielectric Withstanding Voltage (AC) 750 Vrms
.
Specifications by Frequency

Description F1 F2 F3 F4 F5 Units
Frequency 0.05 0.1 0.4 1 3 GHz
Insertion Loss (Max.) 0.075 0.11 0.21 0.38 0.58 dB/ft
0.25 0.36 0.69 1.25 1.9 dB/m

.
Electrical Specification Notes:
Insertion Loss does not include the loss of the connectors. Insertion Loss is estimated as 0.1dB per connector.

Mechanical Specifications
Cable Assembly
Description Minimum Typical Maximum Units
Cable Outer Diameter 0.094 0.098 0.102 in
Weight 0.06 [27.22] lbs [g]
.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including
price, inventory and certifications: MIL-DTL-17 SMA Male Right Angle to SMA Male Right Angle Cable Using M17/113-
RG316 Coax PE3M0093 Pasternack does not make -
any representation or warranty regarding the suitability of the part described herein for any particular purpose, and Pasternack does not assume any liability arising out of the use of any part or documentation.

PE3M0093 REV 1 2
