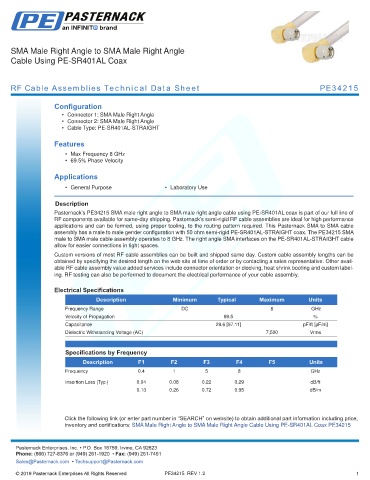

SMA Male Right Angle to SMA Male Right Angle
Cable Using PE-SR401AL Coax

RF Cable Assemblies Technical Data Sheet PE34215

Configuration
• Connector 1: SMA Male Right Angle
• Connector 2: SMA Male Right Angle
• Cable Type: PE-SR401AL-STRAIGHT

Features
• Max Frequency 8 GHz
• 69.5% Phase Velocity

Applications

• General Purpose • Laboratory Use
.
Description
Pasternack’s PE34215 SMA male right angle to SMA male right angle cable using PE-SR401AL coax is part of our full line of
RF components available for same-day shipping. Pasternack’s semi-rigid RF cable assemblies are ideal for high performance
applications and can be formed, using proper tooling, to the routing pattern required. This Pasternack SMA to SMA cable
assembly has a male to male gender configuration with 50 ohm semi-rigid PE-SR401AL-STRAIGHT coax. The PE34215 SMA
male to SMA male cable assembly operates to 8 GHz. The right angle SMA interfaces on the PE-SR401AL-STRAIGHT cable
allow for easier connections in tight spaces.
Custom versions of most RF cable assemblies can be built and shipped same day. Custom cable assembly lengths can be
obtained by specifying the desired length on the web site at time of order or by contacting a sales representative. Other avail-
able RF cable assembly value added services include connector orientation or clocking, heat shrink booting and custom label-
ing. RF testing can also be performed to document the electrical performance of your cable assembly.

Electrical Specifications
Description Minimum Typical Maximum Units
Frequency Range DC 8 GHz
Velocity of Propagation 69.5 %
Capacitance 29.6 [97.11] pF/ft [pF/m]
Dielectric Withstanding Voltage (AC) 7,500 Vrms
.
Specifications by Frequency
Description F1 F2 F3 F4 F5 Units
Frequency 0.4 1 5 8 GHz
Insertion Loss (Typ.) 0.04 0.08 0.22 0.29 dB/ft
0.13 0.26 0.72 0.95 dB/m

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: SMA Male Right Angle to SMA Male Right Angle Cable Using PE-SR401AL Coax PE34215
-
Pasternack does not make
any representation or warranty regarding the suitability of the part described herein for any particular purpose, and Pasternack does not assume any liability arising out of the use of any part or documentation.

PE34215 REV 1.2 1
