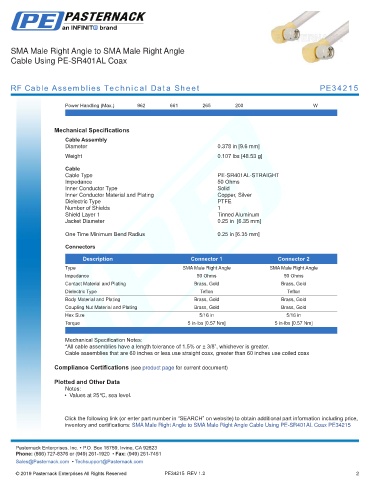

SMA Male Right Angle to SMA Male Right Angle
Cable Using PE-SR401AL Coax

RF Cable Assemblies Technical Data Sheet PE34215

Power Handling (Max.) 962 661 265 200 W
.

Mechanical Specifications
Cable Assembly
Diameter 0.378 in [9.6 mm]
.
Weight 0.107 lbs [48.53 g]
Cable
Cable Type PE-SR401AL-STRAIGHT
Impedance 50 Ohms
Inner Conductor Type Solid
Inner Conductor Material and Plating Copper, Silver
Dielectric Type PTFE
Number of Shields 1
Shield Layer 1 Tinned Aluminum
Jacket Diameter 0.25 in [6.35 mm]
.
One Time Minimum Bend Radius 0.25 in [6.35 mm]
Connectors

Description Connector 1 Connector 2
Type SMA Male Right Angle SMA Male Right Angle
Impedance 50 Ohms 50 Ohms
Contact Material and Plating Brass, Gold Brass, Gold
Dielectric Type Teflon Teflon
Body Material and Plating Brass, Gold Brass, Gold
Coupling Nut Material and Plating Brass, Gold Brass, Gold
Hex Size 5/16 in 5/16 in
Torque 5 in-lbs [0.57 Nm] 5 in-lbs [0.57 Nm]
.
Mechanical Specification Notes:
*All cable assemblies have a length tolerance of 1.5% or ± 3/8”, whichever is greater.
Cable assemblies that are 60 inches or less use straight coax, greater than 60 inches use coiled coax

Compliance Certifications (see product page for current document)

Plotted and Other Data
Notes:
• Values at 25°C, sea level.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: SMA Male Right Angle to SMA Male Right Angle Cable Using PE-SR401AL Coax PE34215
-
Pasternack does not make
any representation or warranty regarding the suitability of the part described herein for any particular purpose, and Pasternack does not assume any liability arising out of the use of any part or documentation.

PE34215 REV 1.2 2
