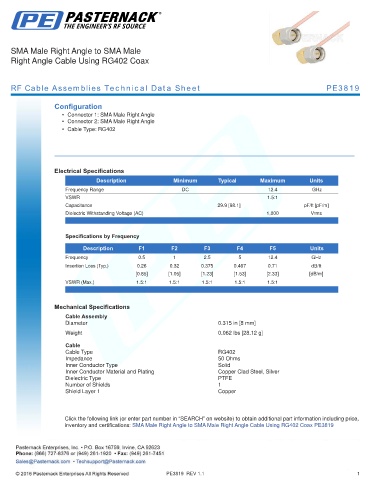

SMA Male Right Angle to SMA Male
Right Angle Cable Using RG402 Coax

RF Cable Assemblies Technical Data Sheet PE3819

Configuration
• Connector 1: SMA Male Right Angle
• Connector 2: SMA Male Right Angle
• Cable Type: RG402

.
Electrical Specifications
Description Minimum Typical Maximum Units
Frequency Range DC 12.4 GHz
VSWR 1.5:1
Capacitance 29.9 [98.1] pF/ft [pF/m]
Dielectric Withstanding Voltage (AC) 1,000 Vrms
.

Specifications by Frequency
Description F1 F2 F3 F4 F5 Units
Frequency 0.5 1 2.5 5 12.4 GHz
Insertion Loss (Typ.) 0.26 0.32 0.375 0.467 0.71 dB/ft
[0.85] [1.05] [1.23] [1.53] [2.33] [dB/m]
VSWR (Max.) 1.5:1 1.5:1 1.5:1 1.5:1 1.5:1
.

Mechanical Specifications
Cable Assembly
Diameter 0.315 in [8 mm]
.
Weight 0.062 lbs [28.12 g]
Cable
Cable Type RG402
Impedance 50 Ohms
Inner Conductor Type Solid
Inner Conductor Material and Plating Copper Clad Steel, Silver
Dielectric Type PTFE
Number of Shields 1
Shield Layer 1 Copper
.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: SMA Male Right Angle to SMA Male Right Angle Cable Using RG402 Coax PE3819

PE3819 REV 1.1 1
