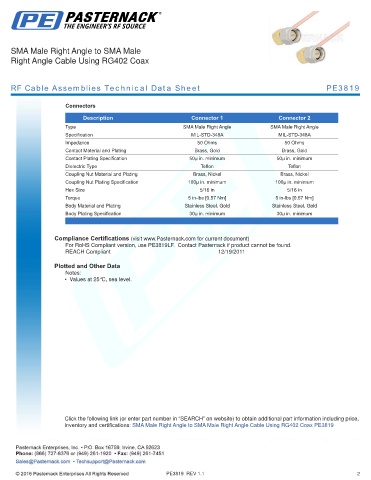

SMA Male Right Angle to SMA Male
Right Angle Cable Using RG402 Coax
RF Cable Assemblies Technical Data Sheet PE3819
Connectors
Description Connector 1 Connector 2
Type SMA Male Right Angle SMA Male Right Angle
Specification MIL-STD-348A MIL-STD-348A
Impedance 50 Ohms 50 Ohms
Contact Material and Plating Brass, Gold Brass, Gold
Contact Plating Specification 50µ in. minimum 50µ in. minimum
Dielectric Type Teflon Teflon
Coupling Nut Material and Plating Brass, Nickel Brass, Nickel
Coupling Nut Plating Specification 100µ in. minimum 100µ in. minimum
Hex Size 5/16 in 5/16 in
Torque 5 in-lbs [0.57 Nm] 5 in-lbs [0.57 Nm]
Body Material and Plating Stainless Steel, Gold Stainless Steel, Gold
Body Plating Specification 30µ in. minimum 30µ in. minimum
.
Compliance Certifications (visit www.Pasternack.com for current document)
For RoHS Compliant version, use PE3819LF. Contact Pasternack if product cannot be found.
REACH Compliant 12/19/2011
Plotted and Other Data
Notes:
• Values at 25°C, sea level.
Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: SMA Male Right Angle to SMA Male Right Angle Cable Using RG402 Coax PE3819
PE3819 REV 1.1 2
