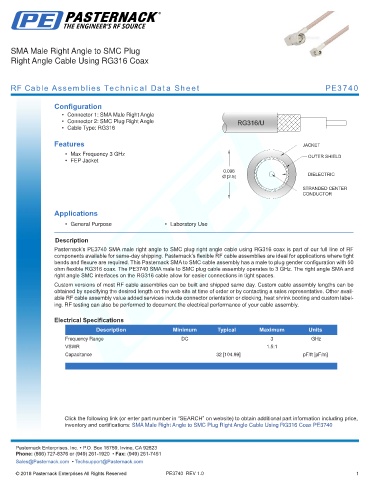

SMA Male Right Angle to SMC Plug
Right Angle Cable Using RG316 Coax

RF Cable Assemblies Technical Data Sheet PE3740

Configuration
• Connector 1: SMA Male Right Angle
• Connector 2: SMC Plug Right Angle
• Cable Type: RG316

Features
• Max Frequency 3 GHz
• FEP Jacket

Applications

• General Purpose • Laboratory Use
.
Description
Pasternack’s PE3740 SMA male right angle to SMC plug right angle cable using RG316 coax is part of our full line of RF
components available for same-day shipping. Pasternack’s flexible RF cable assemblies are ideal for applications where tight
bends and flexure are required. This Pasternack SMA to SMC cable assembly has a male to plug gender configuration with 50
ohm flexible RG316 coax. The PE3740 SMA male to SMC plug cable assembly operates to 3 GHz. The right angle SMA and
right angle SMC interfaces on the RG316 cable allow for easier connections in tight spaces.
Custom versions of most RF cable assemblies can be built and shipped same day. Custom cable assembly lengths can be
obtained by specifying the desired length on the web site at time of order or by contacting a sales representative. Other avail-
able RF cable assembly value added services include connector orientation or clocking, heat shrink booting and custom label-
ing. RF testing can also be performed to document the electrical performance of your cable assembly.

Electrical Specifications
Description Minimum Typical Maximum Units
Frequency Range DC 3 GHz
VSWR 1.5:1
Capacitance 32 [104.99] pF/ft [pF/m]

.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: SMA Male Right Angle to SMC Plug Right Angle Cable Using RG316 Coax PE3740
-
Pasternack does not make
any representation or warranty regarding the suitability of the part described herein for any particular purpose, and Pasternack does not assume any liability arising out of the use of any part or documentation.

PE3740 REV 1.0 1
