SMA Male Right Angle to SMC Plug
Right Angle Cable Using RG316 Coax

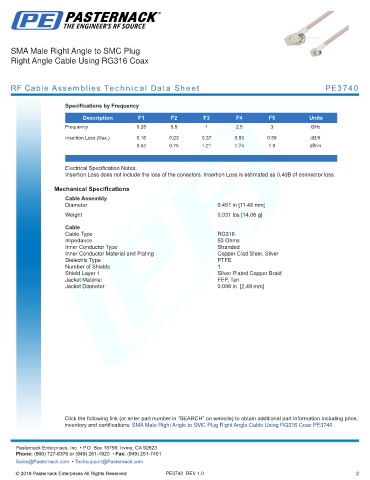

RF Cable Assemblies Technical Data Sheet PE3740

Specifications by Frequency

Description F1 F2 F3 F4 F5 Units
Frequency 0.25 0.5 1 2.5 3 GHz
Insertion Loss (Max.) 0.16 0.23 0.37 0.53 0.58 dB/ft
0.52 0.75 1.21 1.74 1.9 dB/m

.
Electrical Specification Notes:
Insertion Loss does not include the loss of the conectors. Insertion Loss is estimated as 0.4dB of connector loss.

Mechanical Specifications
Cable Assembly
Diameter 0.451 in [11.46 mm]
.
Weight 0.031 lbs [14.06 g]
Cable
Cable Type RG316
Impedance 50 Ohms
Inner Conductor Type Stranded
Inner Conductor Material and Plating Copper Clad Steel, Silver
Dielectric Type PTFE
Number of Shields 1
Shield Layer 1 Silver Plated Copper Braid
Jacket Material FEP, Tan
Jacket Diameter 0.098 in [2.49 mm]
.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: SMA Male Right Angle to SMC Plug Right Angle Cable Using RG316 Coax PE3740
-
Pasternack does not make
any representation or warranty regarding the suitability of the part described herein for any particular purpose, and Pasternack does not assume any liability arising out of the use of any part or documentation.
