SMA Male Right Angle to SMC Plug
Right Angle Cable Using RG316 Coax

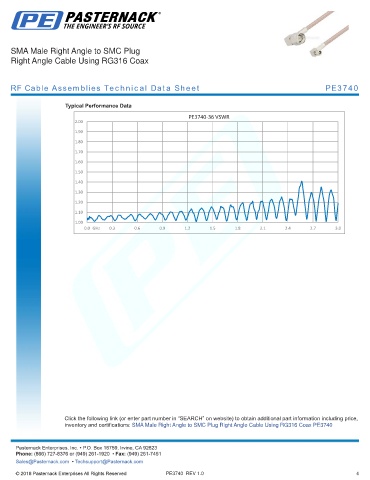

RF Cable Assemblies Technical Data Sheet PE3740

Typical Performance Data
PE3740-36 VSWR
2.00
1.90

1.80
1.70
1.60
1.50
1.40
1.30
1.20
1.10
1.00
0.0 GHz 0.3 0.6 0.9 1.2 1.5 1.8 2.1 2.4 2.7 3.0

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: SMA Male Right Angle to SMC Plug Right Angle Cable Using RG316 Coax PE3740
-
Pasternack does not make
any representation or warranty regarding the suitability of the part described herein for any particular purpose, and Pasternack does not assume any liability arising out of the use of any part or documentation.

PE3740 REV 1.0 4
