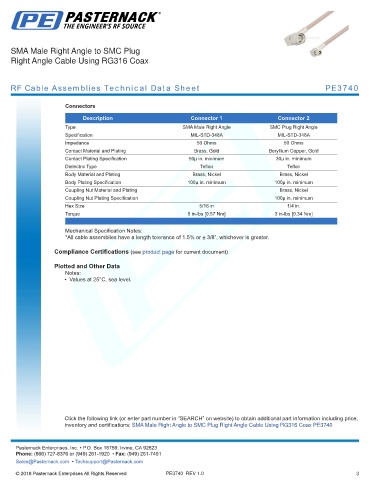

SMA Male Right Angle to SMC Plug
Right Angle Cable Using RG316 Coax

RF Cable Assemblies Technical Data Sheet PE3740

Connectors

Description Connector 1 Connector 2
Type SMA Male Right Angle SMC Plug Right Angle
Specification MIL-STD-348A MIL-STD-348A
Impedance 50 Ohms 50 Ohms
Contact Material and Plating Brass, Gold Beryllium Copper, Gold
Contact Plating Specification 50µ in. minimum 30µ in. minimum
Dielectric Type Teflon Teflon
Body Material and Plating Brass, Nickel Brass, Nickel
Body Plating Specification 100µ in. minimum 100µ in. minimum
Coupling Nut Material and Plating Brass, Nickel
Coupling Nut Plating Specification 100µ in. minimum
Hex Size 5/16 in 1/4 in.
Torque 5 in-lbs [0.57 Nm] 3 in-lbs [0.34 Nm]
.
Mechanical Specification Notes:
*All cable assemblies have a length tolerance of 1.5% or ± 3/8”, whichever is greater.

Compliance Certifications (see product page for current document)

Plotted and Other Data
Notes:
• Values at 25°C, sea level.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: SMA Male Right Angle to SMC Plug Right Angle Cable Using RG316 Coax PE3740
-
Pasternack does not make
any representation or warranty regarding the suitability of the part described herein for any particular purpose, and Pasternack does not assume any liability arising out of the use of any part or documentation.

PE3740 REV 1.0 3
