SMA Male Right Angle to SSMC Jack Bulkhead
Cable Using PE-SR405FLJ Coax

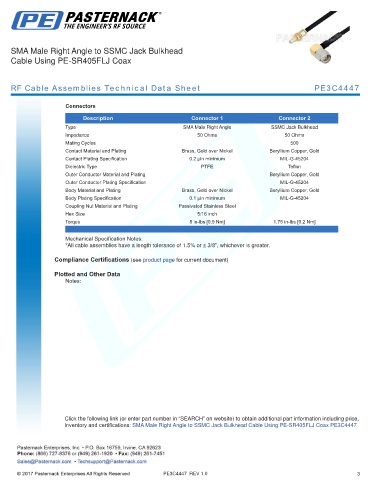

RF Cable Assemblies Technical Data Sheet PE3C4447

Connectors

Description Connector 1 Connector 2
Type SMA Male Right Angle SSMC Jack Bulkhead
Impedance 50 Ohms 50 Ohms
Mating Cycles 500
Contact Material and Plating Brass, Gold over Nickel Beryllium Copper, Gold
Contact Plating Specification 0.2 µin minimum MIL-G-45204
Dielectric Type PTFE Teflon
Outer Conductor Material and Plating Beryllium Copper, Gold
Outer Conductor Plating Specification MIL-G-45204
Body Material and Plating Brass, Gold over Nickel Beryllium Copper, Gold
Body Plating Specification 0.1 µin minimum MIL-G-45204
Coupling Nut Material and Plating Passivated Stainless Steel
Hex Size 5/16 inch
Torque 8 in-lbs [0.9 Nm] 1.75 in-lbs [0.2 Nm]
.
Mechanical Specification Notes:
*All cable assemblies have a length tolerance of 1.5% or ± 3/8”, whichever is greater.

Compliance Certifications (see product page for current document)

Plotted and Other Data
Notes:

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: SMA Male Right Angle to SSMC Jack Bulkhead Cable Using PE-SR405FLJ Coax PE3C4447
