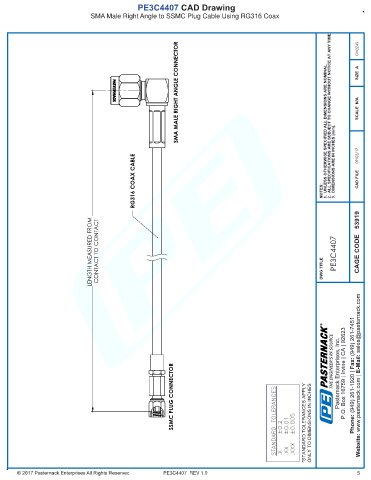

PE3C4407 CAD Drawing
SMA Male Right Angle to SSMC Plug Cable Using RG316 Coax CN2245
SMA MALE RIGHT ANGLE CONNECTOR UNLESS OTHERWISE SPECIFIED ALL DIMENSIONS ARE NOMINAL. ALL SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE AT ANY TIME. SIZE A SCALE N/A
RG316 COAX CABLE NOTES: 1. 2. DIMENSIONS ARE IN INCHES [mm]. 3. 09/03/17 CAD FILE
LENGTH MEASURED FROM CONTACT TO CONTACT DWG TITLE PE3C4407 CAGE CODE 53919
R
THE ENGINEER'S RF SOURCE Pasternack Enterprises, Inc. P.O. Box 16759 | Irvine | CA | 92623 Phone: (949) 261-1920 | Fax: (949) 261-7451 Website: www.pasternack.com | E-Mail: sales@pasternack.com
SSMC PLUG CONNECTOR STANDARD TOLERANCES *STANDARD TOLERANCES APPLY ONLY TO DIMENSIONS IN INCHES
PE3C4407 REV 1.0 .X ±0.2 .XX ±0.01 .XXX ±0.005 5
