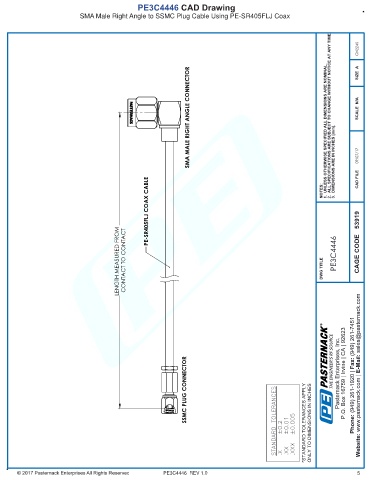

PE3C4446 CAD Drawing
SMA Male Right Angle to SSMC Plug Cable Using PE-SR405FLJ Coax
CN2245 SIZE A
SMA MALE RIGHT ANGLE CONNECTOR UNLESS OTHERWISE SPECIFIED ALL DIMENSIONS ARE NOMINAL. ALL SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE AT ANY TIME. DIMENSIONS ARE IN INCHES [mm]. SCALE N/A 09/07/17
PE-SR405FLJ COAX CABLE NOTES: 1. 2. 3. CAD FILE
LENGTH MEASURED FROM CONTACT TO CONTACT DWG TITLE PE3C4446 CAGE CODE 53919
R
SSMC PLUG CONNECTOR STANDARD TOLERANCES *STANDARD TOLERANCES APPLY ONLY TO DIMENSIONS IN INCHES THE ENGINEER'S RF SOURCE Pasternack Enterprises, Inc. P.O. Box 16759 | Irvine | CA | 92623 Phone: (949) 261-1920 | Fax: (949) 261-7451 Website: www.pasternack.com | E-Mail: sales@pasternack.com
PE3C4446 REV 1.0 .X ±0.2 .XX ±0.01 .XXX ±0.005 5
