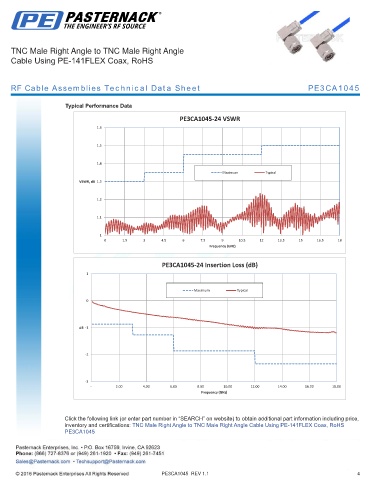

TNC Male Right Angle to TNC Male Right Angle
Cable Using PE-141FLEX Coax, RoHS

RF Cable Assemblies Technical Data Sheet PE3CA1045

Typical Performance Data

PE3CA1045-24 VSWR
1.6

1.5

1.4
Maximum Typical
VSWR, dB 1.3

1.2

1.1

1
0 1.5 3 4.5 6 7.5 9 10.5 12 13.5 15 16.5 18
Frequency (GHz)

PE3CA1045-24 Insertion Loss (dB)
1

Maximum Typical

0

dB -1

-2

-3
- 2.00 4.00 6.00 8.00 10.00 12.00 14.00 16.00 18.00
Frequency (GHz)

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: TNC Male Right Angle to TNC Male Right Angle Cable Using PE-141FLEX Coax, RoHS
PE3CA1045

PE3CA1045 REV 1.1 4
