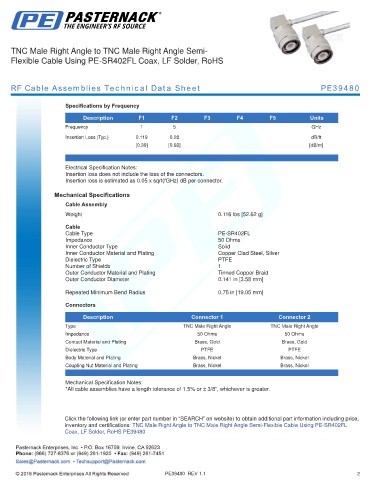

TNC Male Right Angle to TNC Male Right Angle Semi-
Flexible Cable Using PE-SR402FL Coax, LF Solder, RoHS

RF Cable Assemblies Technical Data Sheet PE39480

Specifications by Frequency

Description F1 F2 F3 F4 F5 Units
Frequency 1 5 GHz
Insertion Loss (Typ.) 0.119 0.28 dB/ft
[0.39] [0.92] [dB/m]

.
Electrical Specification Notes:
Insertion loss does not include the loss of the connectors.
Insertion loss is estimated as 0.05 x sqrt(fGHz) dB per connector.

Mechanical Specifications
Cable Assembly
.
Weight 0.116 lbs [52.62 g]
Cable
Cable Type PE-SR402FL
Impedance 50 Ohms
Inner Conductor Type Solid
Inner Conductor Material and Plating Copper Clad Steel, Silver
Dielectric Type PTFE
Number of Shields 1
Outer Conductor Material and Plating Tinned Copper Braid
Outer Conductor Diameter 0.141 in [3.58 mm]
.
Repeated Minimum Bend Radius 0.75 in [19.05 mm]
Connectors

Description Connector 1 Connector 2
Type TNC Male Right Angle TNC Male Right Angle
Impedance 50 Ohms 50 Ohms
Contact Material and Plating Brass, Gold Brass, Gold
Dielectric Type PTFE PTFE
Body Material and Plating Brass, Nickel Brass, Nickel
Coupling Nut Material and Plating Brass, Nickel Brass, Nickel
.
Mechanical Specification Notes:
*All cable assemblies have a length tolerance of 1.5% or ± 3/8”, whichever is greater.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: TNC Male Right Angle to TNC Male Right Angle Semi-Flexible Cable Using PE-SR402FL
Coax, LF Solder, RoHS PE39480

PE39480 REV 1.1 2
