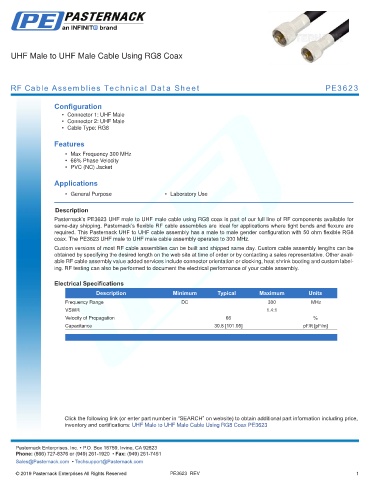

UHF Male to UHF Male Cable Using RG8 Coax

RF Cable Assemblies Technical Data Sheet PE3623

Configuration
• Connector 1: UHF Male
• Connector 2: UHF Male
• Cable Type: RG8

Features
• Max Frequency 300 MHz
• 66% Phase Velocity
• PVC (NC) Jacket

Applications
• General Purpose • Laboratory Use
.
Description
Pasternack’s PE3623 UHF male to UHF male cable using RG8 coax is part of our full line of RF components available for
same-day shipping. Pasternack’s flexible RF cable assemblies are ideal for applications where tight bends and flexure are
required. This Pasternack UHF to UHF cable assembly has a male to male gender configuration with 50 ohm flexible RG8
coax. The PE3623 UHF male to UHF male cable assembly operates to 300 MHz.
Custom versions of most RF cable assemblies can be built and shipped same day. Custom cable assembly lengths can be
obtained by specifying the desired length on the web site at time of order or by contacting a sales representative. Other avail-
able RF cable assembly value added services include connector orientation or clocking, heat shrink booting and custom label-
ing. RF testing can also be performed to document the electrical performance of your cable assembly.

Electrical Specifications
Description Minimum Typical Maximum Units
Frequency Range DC 300 MHz
VSWR 1.4:1
Velocity of Propagation 66 %
Capacitance 30.8 [101.05] pF/ft [pF/m]

.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: UHF Male to UHF Male Cable Using RG8 Coax PE3623
-
Pasternack does not make
any representation or warranty regarding the suitability of the part described herein for any particular purpose, and Pasternack does not assume any liability arising out of the use of any part or documentation.

PE3623 REV 1
