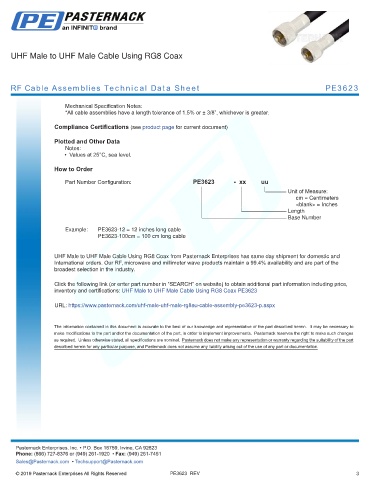

UHF Male to UHF Male Cable Using RG8 Coax

RF Cable Assemblies Technical Data Sheet PE3623

Mechanical Specification Notes:
*All cable assemblies have a length tolerance of 1.5% or ± 3/8”, whichever is greater.

Compliance Certifications (see product page for current document)
Plotted and Other Data
Notes:
• Values at 25°C, sea level.

How to Order

Part Number Configuration: PE3623 - xx uu
| | | | | Unit of Measure:
| | cm = Centimeters
<blank> = Inches
| | Length
Base Number

Example: PE3623-12 = 12 inches long cable
PE3623-100cm = 100 cm long cable

UHF Male to UHF Male Cable Using RG8 Coax from Pasternack Enterprises has same day shipment for domestic and
International orders. Our RF, microwave and millimeter wave products maintain a 99.4% availability and are part of the
broadest selection in the industry.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: UHF Male to UHF Male Cable Using RG8 Coax PE3623

URL: https://www.pasternack.com/uhf-male-uhf-male-rg8au-cable-assembly-pe3623-p.aspx

-
Pasternack does not make
any representation or warranty regarding the suitability of the part described herein for any particular purpose, and Pasternack does not assume any liability arising out of the use of any part or documentation.

PE3623 REV 3
