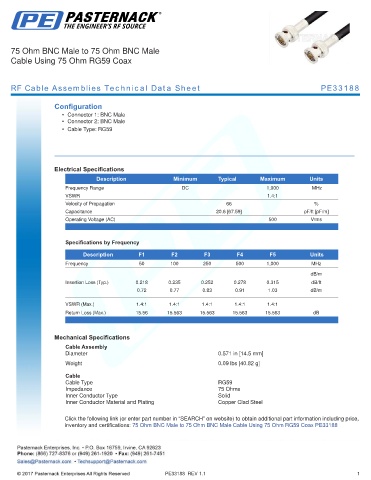

75 Ohm BNC Male to 75 Ohm BNC Male
Cable Using 75 Ohm RG59 Coax

RF Cable Assemblies Technical Data Sheet PE33188

Configuration
• Connector 1: BNC Male
• Connector 2: BNC Male
• Cable Type: RG59

.
Electrical Specifications
Description Minimum Typical Maximum Units
Frequency Range DC 1,000 MHz
VSWR 1.4:1
Velocity of Propagation 66 %
Capacitance 20.6 [67.59] pF/ft [pF/m]
Operating Voltage (AC) 500 Vrms
.

Specifications by Frequency

Description F1 F2 F3 F4 F5 Units
Frequency 50 100 250 500 1,000 MHz
dB/m
Insertion Loss (Typ.) 0.218 0.235 0.252 0.278 0.315 dB/ft
0.72 0.77 0.83 0.91 1.03 dB/m

VSWR (Max.) 1.4:1 1.4:1 1.4:1 1.4:1 1.4:1
Return Loss (Max.) 15.56 15.563 15.563 15.563 15.563 dB
.

Mechanical Specifications
Cable Assembly
Diameter 0.571 in [14.5 mm]
.
Weight 0.09 lbs [40.82 g]

Cable
Cable Type RG59
Impedance 75 Ohms
Inner Conductor Type Solid
Inner Conductor Material and Plating Copper Clad Steel

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: 75 Ohm BNC Male to 75 Ohm BNC Male Cable Using 75 Ohm RG59 Coax PE33188

PE33188 REV 1.1 1
