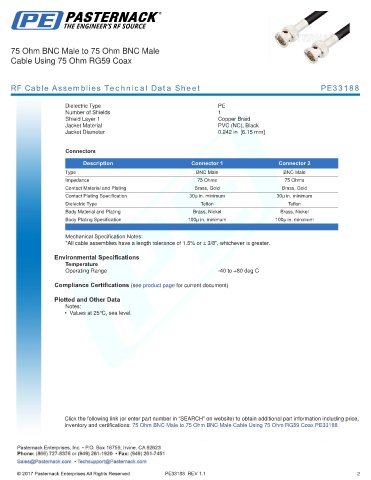

75 Ohm BNC Male to 75 Ohm BNC Male
Cable Using 75 Ohm RG59 Coax

RF Cable Assemblies Technical Data Sheet PE33188

Dielectric Type PE
Number of Shields 1
Shield Layer 1 Copper Braid
Jacket Material PVC (NC), Black
Jacket Diameter 0.242 in [6.15 mm]
.
Connectors

Description Connector 1 Connector 2
Type BNC Male BNC Male
Impedance 75 Ohms 75 Ohms
Contact Material and Plating Brass, Gold Brass, Gold
Contact Plating Specification 30µ in. minimum 30µ in. minimum
Dielectric Type Teflon Teflon
Body Material and Plating Brass, Nickel Brass, Nickel
Body Plating Specification 100µ in. minimum 100µ in. minimum
.
Mechanical Specification Notes:
*All cable assemblies have a length tolerance of 1.5% or ± 3/8”, whichever is greater.

Environmental Specifications
Temperature
Operating Range -40 to +80 deg C

Compliance Certifications (see product page for current document)

Plotted and Other Data
Notes:
• Values at 25°C, sea level.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: 75 Ohm BNC Male to 75 Ohm BNC Male Cable Using 75 Ohm RG59 Coax PE33188

PE33188 REV 1.1 2
