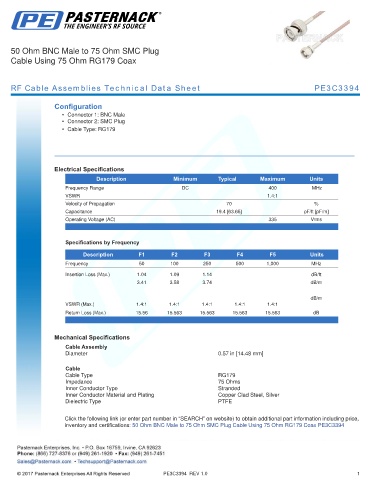

50 Ohm BNC Male to 75 Ohm SMC Plug
Cable Using 75 Ohm RG179 Coax

RF Cable Assemblies Technical Data Sheet PE3C3394

Configuration
• Connector 1: BNC Male
• Connector 2: SMC Plug
• Cable Type: RG179

.
Electrical Specifications
Description Minimum Typical Maximum Units
Frequency Range DC 400 MHz
VSWR 1.4:1
Velocity of Propagation 70 %
Capacitance 19.4 [63.65] pF/ft [pF/m]
Operating Voltage (AC) 335 Vrms
.

Specifications by Frequency

Description F1 F2 F3 F4 F5 Units
Frequency 50 100 250 500 1,000 MHz
Insertion Loss (Max.) 1.04 1.09 1.14 dB/ft
3.41 3.58 3.74 dB/m

dB/m
VSWR (Max.) 1.4:1 1.4:1 1.4:1 1.4:1 1.4:1
Return Loss (Max.) 15.56 15.563 15.563 15.563 15.563 dB
.

Mechanical Specifications
Cable Assembly
Diameter 0.57 in [14.48 mm]
.
Cable
Cable Type RG179
Impedance 75 Ohms
Inner Conductor Type Stranded
Inner Conductor Material and Plating Copper Clad Steel, Silver
Dielectric Type PTFE

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: 50 Ohm BNC Male to 75 Ohm SMC Plug Cable Using 75 Ohm RG179 Coax PE3C3394

PE3C3394 REV 1.0 1
