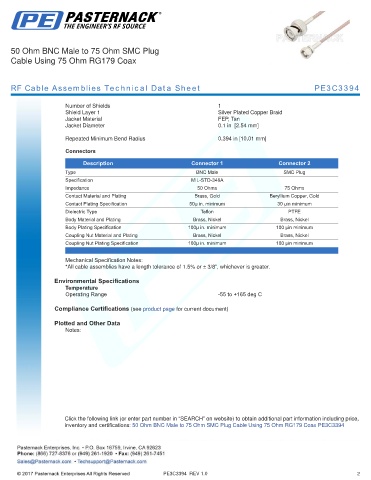

50 Ohm BNC Male to 75 Ohm SMC Plug
Cable Using 75 Ohm RG179 Coax

RF Cable Assemblies Technical Data Sheet PE3C3394

Number of Shields 1
Shield Layer 1 Silver Plated Copper Braid
Jacket Material FEP, Tan
Jacket Diameter 0.1 in [2.54 mm]
.
Repeated Minimum Bend Radius 0.394 in [10.01 mm]
Connectors

Description Connector 1 Connector 2
Type BNC Male SMC Plug
Specification MIL-STD-348A
Impedance 50 Ohms 75 Ohms
Contact Material and Plating Brass, Gold Beryllium Copper, Gold
Contact Plating Specification 50µ in. minimum 30 µin minimum
Dielectric Type Teflon PTFE
Body Material and Plating Brass, Nickel Brass, Nickel
Body Plating Specification 100µ in. minimum 100 µin minimum
Coupling Nut Material and Plating Brass, Nickel Brass, Nickel
Coupling Nut Plating Specification 100µ in. minimum 100 µin minimum
.
Mechanical Specification Notes:
*All cable assemblies have a length tolerance of 1.5% or ± 3/8”, whichever is greater.

Environmental Specifications
Temperature
Operating Range -55 to +165 deg C

Compliance Certifications (see product page for current document)

Plotted and Other Data
Notes:

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: 50 Ohm BNC Male to 75 Ohm SMC Plug Cable Using 75 Ohm RG179 Coax PE3C3394

PE3C3394 REV 1.0 2
