75 Ohm F Male to 75 Ohm F Female Bulkhead
Cable Using 75 Ohm RG179 Coax

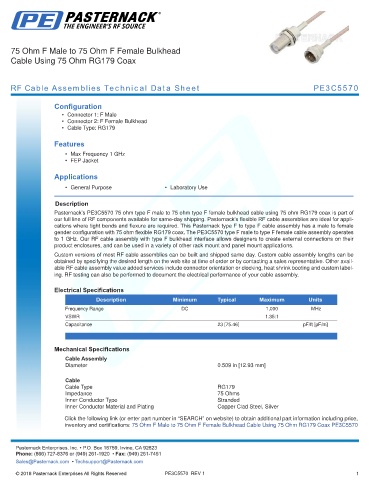

RF Cable Assemblies Technical Data Sheet PE3C5570

Configuration
• Connector 1: F Male
• Connector 2: F Female Bulkhead
• Cable Type: RG179

Features
• Max Frequency 1 GHz
• FEP Jacket

Applications

• General Purpose • Laboratory Use
.
Description
Pasternack’s PE3C5570 75 ohm type F male to 75 ohm type F female bulkhead cable using 75 ohm RG179 coax is part of
our full line of RF components available for same-day shipping. Pasternack’s flexible RF cable assemblies are ideal for appli-
cations where tight bends and flexure are required. This Pasternack type F to type F cable assembly has a male to female
gender configuration with 75 ohm flexible RG179 coax. The PE3C5570 type F male to type F female cable assembly operates
to 1 GHz. Our RF cable assembly with type F bulkhead interface allows designers to create external connections on their
product enclosures, and can be used in a variety of other rack mount and panel mount applications.
Custom versions of most RF cable assemblies can be built and shipped same day. Custom cable assembly lengths can be
obtained by specifying the desired length on the web site at time of order or by contacting a sales representative. Other avail-
able RF cable assembly value added services include connector orientation or clocking, heat shrink booting and custom label-
ing. RF testing can also be performed to document the electrical performance of your cable assembly.

Electrical Specifications
Description Minimum Typical Maximum Units
Frequency Range DC 1,000 MHz
VSWR 1.35:1
Capacitance 23 [75.46] pF/ft [pF/m]

.
Mechanical Specifications
Cable Assembly
Diameter 0.509 in [12.93 mm]
.
Cable
Cable Type RG179
Impedance 75 Ohms
Inner Conductor Type Stranded
Inner Conductor Material and Plating Copper Clad Steel, Silver

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: 75 Ohm F Male to 75 Ohm F Female Bulkhead Cable Using 75 Ohm RG179 Coax PE3C5570
-
Pasternack does not make
any representation or warranty regarding the suitability of the part described herein for any particular purpose, and Pasternack does not assume any liability arising out of the use of any part or documentation.

PE3C5570 REV 1 1
