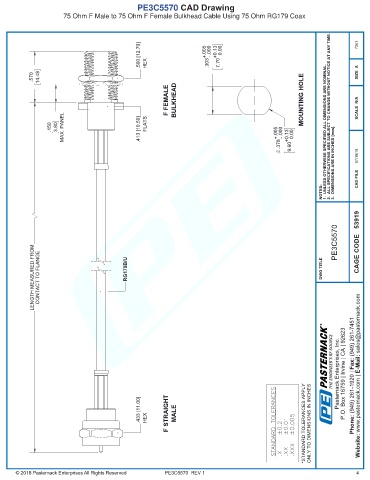

PE3C5570 CAD Drawing
75 Ohm F Male to 75 Ohm F Female Bulkhead Cable Using 75 Ohm RG179 Coax

7361
.500 [12.70] .303 +.005 -.000 7.70 +0.13 0.00

HEX
.570 14.48 SIZE A

F FEMALE BULKHEAD MOUNTING HOLE SCALE N/A

MAX. PANEL FLATS 2. ALL SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE AT ANY TIME.
.150 3.80 .413 [10.50] .378 +.005 -.000 9.60 +0.13 0.00 1. UNLESS OTHERWISE SPECIFIED ALL DIMENSIONS ARE NOMINAL. 07/19/18

NOTES: 3. DIMENSIONS ARE IN INCHES [mm]. CAD FILE

PE3C5570 CAGE CODE 53919

LENGTH MEASURED FROM CONTACT TO FLANGE RG179B/U DWG TITLE

Pasternack does not make Phone: (949) 261-1920 | Fax: (949) 261-7451
R
THE ENGINEER'S RF SOURCE Pasternack Enterprises, Inc. P.O. Box 16759 | Irvine | CA | 92623 Website: www.pasternack.com | E-Mail: sales@pasternack.com

ONLY TO DIMENSIONS IN INCHES
*STANDARD TOLERANCES APPLY
.433 [11.00] HEX F STRAIGHT MALE STANDARD TOLERANCES

.XXX ±0.005
.XX ±0.01
.X ±0.2

any representation or warranty regarding the suitability of the part described herein for any particular purpose, and Pasternack does not assume any liability arising out of the use of any part or documentation. -

PE3C5570 REV 1 4
