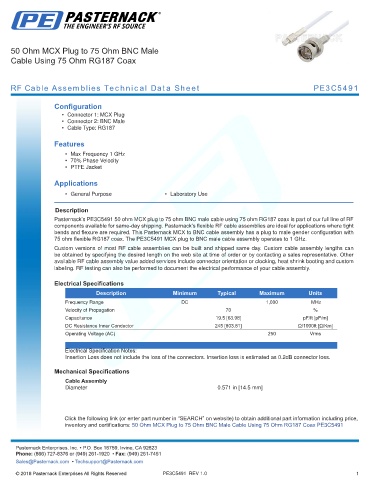

50 Ohm MCX Plug to 75 Ohm BNC Male
Cable Using 75 Ohm RG187 Coax

RF Cable Assemblies Technical Data Sheet PE3C5491

Configuration
• Connector 1: MCX Plug
• Connector 2: BNC Male
• Cable Type: RG187

Features
• Max Frequency 1 GHz
• 70% Phase Velocity
• PTFE Jacket

Applications
• General Purpose • Laboratory Use
.
Description
Pasternack’s PE3C5491 50 ohm MCX plug to 75 ohm BNC male cable using 75 ohm RG187 coax is part of our full line of RF
components available for same-day shipping. Pasternack’s flexible RF cable assemblies are ideal for applications where tight
bends and flexure are required. This Pasternack MCX to BNC cable assembly has a plug to male gender configuration with
75 ohm flexible RG187 coax. The PE3C5491 MCX plug to BNC male cable assembly operates to 1 GHz.
Custom versions of most RF cable assemblies can be built and shipped same day. Custom cable assembly lengths can
be obtained by specifying the desired length on the web site at time of order or by contacting a sales representative. Other
available RF cable assembly value added services include connector orientation or clocking, heat shrink booting and custom
labeling. RF testing can also be performed to document the electrical performance of your cable assembly.

Electrical Specifications
Description Minimum Typical Maximum Units
Frequency Range DC 1,000 MHz
Velocity of Propagation 70 %
Capacitance 19.5 [63.98] pF/ft [pF/m]
DC Resistance Inner Conductor 245 [803.81] Ω/1000ft [Ω/Km]
Operating Voltage (AC) 250 Vrms

.
Electrical Specification Notes:
Insertion Loss does not include the loss of the connectors. Insertion loss is estimated as 0.2dB connector loss.

Mechanical Specifications
Cable Assembly
Diameter 0.571 in [14.5 mm]
.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: 50 Ohm MCX Plug to 75 Ohm BNC Male Cable Using 75 Ohm RG187 Coax PE3C5491
-
Pasternack does not make
any representation or warranty regarding the suitability of the part described herein for any particular purpose, and Pasternack does not assume any liability arising out of the use of any part or documentation.

PE3C5491 REV 1.0 1
