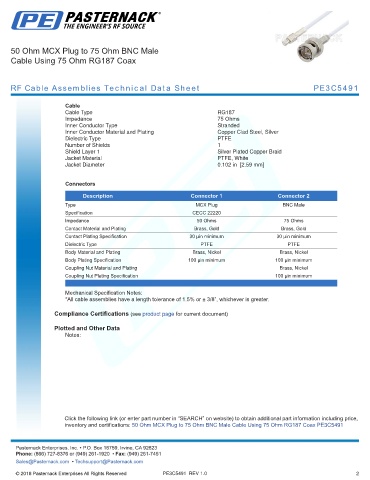

50 Ohm MCX Plug to 75 Ohm BNC Male
Cable Using 75 Ohm RG187 Coax

RF Cable Assemblies Technical Data Sheet PE3C5491

Cable
Cable Type RG187
Impedance 75 Ohms
Inner Conductor Type Stranded
Inner Conductor Material and Plating Copper Clad Steel, Silver
Dielectric Type PTFE
Number of Shields 1
Shield Layer 1 Silver Plated Copper Braid
Jacket Material PTFE, White
Jacket Diameter 0.102 in [2.59 mm]
.

Connectors

Description Connector 1 Connector 2
Type MCX Plug BNC Male
Specification CECC 22220
Impedance 50 Ohms 75 Ohms
Contact Material and Plating Brass, Gold Brass, Gold
Contact Plating Specification 30 µin minimum 30 µin minimum
Dielectric Type PTFE PTFE
Body Material and Plating Brass, Nickel Brass, Nickel
Body Plating Specification 100 µin minimum 100 µin minimum
Coupling Nut Material and Plating Brass, Nickel
Coupling Nut Plating Specification 100 µin minimum
.
Mechanical Specification Notes:
*All cable assemblies have a length tolerance of 1.5% or ± 3/8”, whichever is greater.

Compliance Certifications (see product page for current document)

Plotted and Other Data
Notes:

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: 50 Ohm MCX Plug to 75 Ohm BNC Male Cable Using 75 Ohm RG187 Coax PE3C5491
-
Pasternack does not make
any representation or warranty regarding the suitability of the part described herein for any particular purpose, and Pasternack does not assume any liability arising out of the use of any part or documentation.

PE3C5491 REV 1.0 2
