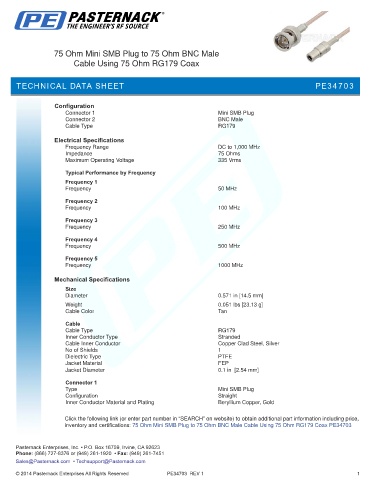

75 Ohm Mini SMB Plug to 75 Ohm BNC Male
Cable Using 75 Ohm RG179 Coax

TECHNICAL D PE34703
TECHNICAL DATA SHEETATA SHEET

Configuration
Connector 1 Mini SMB Plug
Connector 2 BNC Male
Cable Type RG179

Electrical Specifications
Frequency Range DC to 1,000 MHz
Impedance 75 Ohms
Maximum Operating Voltage 335 Vrms

Typical Performance by Frequency
Frequency 1
Frequency 50 MHz

Frequency 2
Frequency 100 MHz

Frequency 3
Frequency 250 MHz

Frequency 4
Frequency 500 MHz
Frequency 5
Frequency 1000 MHz

Mechanical Specifications
Size
Diameter 0.571 in [14.5 mm]
.
Weight 0.051 lbs [23.13 g]
Cable Color Tan

Cable
Cable Type RG179
Inner Conductor Type Stranded
Cable Inner Conductor Copper Clad Steel, Silver
No of Shields 1
Dielectric Type PTFE
Jacket Material FEP
Jacket Diameter 0.1 in [2.54 mm]
Connector 1
Type Mini SMB Plug
Configuration Straight
Inner Conductor Material and Plating Beryllium Copper, Gold

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: 75 Ohm Mini SMB Plug to 75 Ohm BNC Male Cable Using 75 Ohm RG179 Coax PE34703

PE34703 REV 1 1
