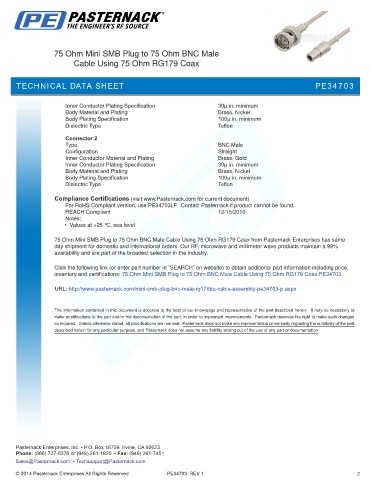

75 Ohm Mini SMB Plug to 75 Ohm BNC Male
Cable Using 75 Ohm RG179 Coax

TECHNICAL D PE34703
TECHNICAL DATA SHEETATA SHEET

Inner Conductor Plating Specification 30µ in. minimum
Body Material and Plating Brass, Nickel
Body Plating Specification 100µ in. minimum
Dielectric Type Teflon

Connector 2
Type BNC Male
Configuration Straight
Inner Conductor Material and Plating Brass, Gold
Inner Conductor Plating Specification 30µ in. minimum
Body Material and Plating Brass, Nickel
Body Plating Specification 100µ in. minimum
Dielectric Type Teflon

Compliance Certifications (visit www.Pasternack.com for current document)
For RoHS Compliant version, use PE34703LF. Contact Pasternack if product cannot be found.
REACH Compliant 12/15/2010
Notes:
• Values at +25 °C, sea level

75 Ohm Mini SMB Plug to 75 Ohm BNC Male Cable Using 75 Ohm RG179 Coax from Pasternack Enterprises has same
day shipment for domestic and International orders. Our RF, microwave and millimeter wave products maintain a 99%
availability and are part of the broadest selection in the industry.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: 75 Ohm Mini SMB Plug to 75 Ohm BNC Male Cable Using 75 Ohm RG179 Coax PE34703

URL: http://www.pasternack.com/mini-smb-plug-bnc-male-rg179bu-cable-assembly-pe34703-p.aspx

PE34703 REV 1 2
