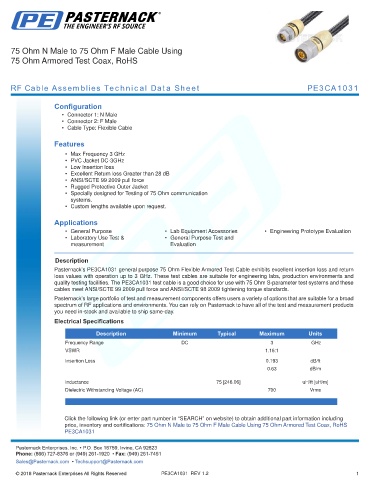

75 Ohm N Male to 75 Ohm F Male Cable Using
75 Ohm Armored Test Coax, RoHS

RF Cable Assemblies Technical Data Sheet PE3CA1031

Configuration
• Connector 1: N Male
• Connector 2: F Male
• Cable Type: Flexible Cable

Features
• Max Frequency 3 GHz
• PVC Jacket DC-3GHz
• Low Insertion loss
• Excellent Return loss Greater than 28 dB
• ANSI/SCTE 99 2009 pull force
• Rugged Protective Outer Jacket
• Specially designed for Testing of 75 Ohm communication
systems.
• Custom lengths available upon request.

Applications
• General Purpose • Lab Equipment Accessories • Engineering Prototype Evaluation
• Laboratory Use Test & • General Purpose Test and
measurement Evaluation
.
Description
Pasternack’s PE3CA1031 general purpose 75 Ohm Flexible Armored Test Cable exhibits excellent insertion loss and return
loss values with operation up to 3 GHz. These test cables are suitable for engineering labs, production environments and
quality testing facilities. The PE3CA1031 test cable is a good choice for use with 75 Ohm S-parameter test systems and these
cables meet ANSI/SCTE 99 2009 pull force and ANSI/SCTE 98 2009 tightening torque standards.
Pasternack’s large portfolio of test and measurement components offers users a variety of options that are suitable for a broad
spectrum of RF applications and environments. You can rely on Pasternack to have all of the test and measurement products
you need in-stock and available to ship same-day.
Electrical Specifications

Description Minimum Typical Maximum Units
Frequency Range DC 3 GHz
VSWR 1.16:1
Insertion Loss 0.193 dB/ft
0.63 dB/m

Inductance 75 [246.06] uH/ft [uH/m]
Dielectric Withstanding Voltage (AC) 700 Vrms
.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including
price, inventory and certifications: 75 Ohm N Male to 75 Ohm F Male Cable Using 75 Ohm Armored Test Coax, RoHS
PE3CA1031 Pasternack does not make -
any representation or warranty regarding the suitability of the part described herein for any particular purpose, and Pasternack does not assume any liability arising out of the use of any part or documentation.

PE3CA1031 REV 1.2 1
