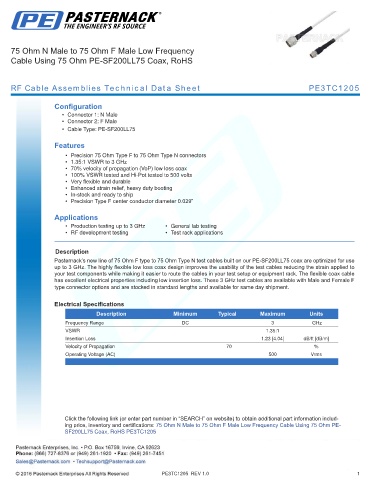

75 Ohm N Male to 75 Ohm F Male Low Frequency
Cable Using 75 Ohm PE-SF200LL75 Coax, RoHS

RF Cable Assemblies Technical Data Sheet PE3TC1205

Configuration
• Connector 1: N Male
• Connector 2: F Male
• Cable Type: PE-SF200LL75

Features
• Precision 75 Ohm Type F to 75 Ohm Type N connectors
• 1.35:1 VSWR to 3 GHz
• 70% velocity of propagation (VoP) low loss coax
• 100% VSWR tested and Hi-Pot tested to 500 volts
• Very flexible and durable
• Enhanced strain relief, heavy duty booting
• In-stock and ready to ship
• Precision Type F center conductor diameter 0.029”

Applications
• Production testing up to 3 GHz • General lab testing
• RF development testing • Test rack applications
.
Description
Pasternack’s new line of 75 Ohm F type to 75 Ohm Type N test cables built on our PE-SF200LL75 coax are optimized for use
up to 3 GHz. The highly flexible low loss coax design improves the usability of the test cables reducing the strain applied to
your test components while making it easier to route the cables in your test setup or equipment rack. The flexible coax cable
has excellent electrical properties including low insertion loss. These 3 GHz test cables are available with Male and Female F
type connector options and are stocked in standard lengths and available for same day shipment.

Electrical Specifications
Description Minimum Typical Maximum Units
Frequency Range DC 3 GHz
VSWR 1.35:1
Insertion Loss 1.23 [4.04] dB/ft [dB/m]
Velocity of Propagation 70 %
Operating Voltage (AC) 500 Vrms
.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information includ-
ing price, inventory and certifications: 75 Ohm N Male to 75 Ohm F Male Low Frequency Cable Using 75 Ohm PE-
SF200LL75 Coax, RoHS PE3TC1205

PE3TC1205 REV 1.0 1
