SMP Female to SMP Female Cable Using PE-P047 Coax

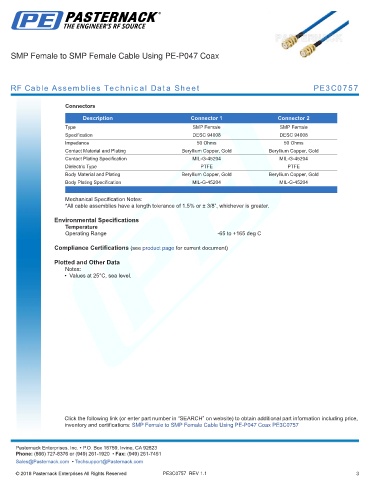

RF Cable Assemblies Technical Data Sheet PE3C0757

Connectors

Description Connector 1 Connector 2
Type SMP Female SMP Female
Specification DESC 94008 DESC 94008
Impedance 50 Ohms 50 Ohms
Contact Material and Plating Beryllium Copper, Gold Beryllium Copper, Gold
Contact Plating Specification MIL-G-45204 MIL-G-45204
Dielectric Type PTFE PTFE
Body Material and Plating Beryllium Copper, Gold Beryllium Copper, Gold
Body Plating Specification MIL-G-45204 MIL-G-45204
.
Mechanical Specification Notes:
*All cable assemblies have a length tolerance of 1.5% or ± 3/8”, whichever is greater.
Environmental Specifications
Temperature
Operating Range -65 to +165 deg C

Compliance Certifications (see product page for current document)

Plotted and Other Data
Notes:
• Values at 25°C, sea level.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: SMP Female to SMP Female Cable Using PE-P047 Coax PE3C0757
-
Pasternack does not make
any representation or warranty regarding the suitability of the part described herein for any particular purpose, and Pasternack does not assume any liability arising out of the use of any part or documentation.

PE3C0757 REV 1.1 3
