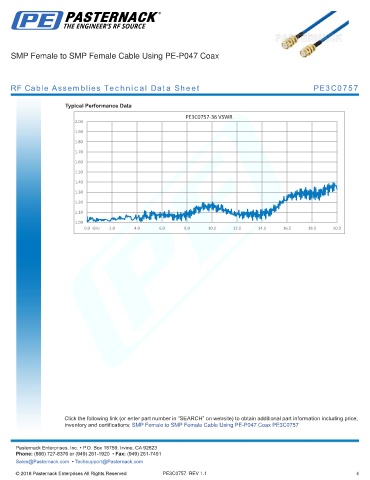

SMP Female to SMP Female Cable Using PE-P047 Coax

RF Cable Assemblies Technical Data Sheet PE3C0757

Typical Performance Data
PE3C0757-36 VSWR
2.00
1.90

1.80
1.70
1.60
1.50
1.40
1.30
1.20
1.10
1.00
0.0 GHz 2.0 4.0 6.0 8.0 10.0 12.0 14.0 16.0 18.0 20.0

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: SMP Female to SMP Female Cable Using PE-P047 Coax PE3C0757
-
Pasternack does not make
any representation or warranty regarding the suitability of the part described herein for any particular purpose, and Pasternack does not assume any liability arising out of the use of any part or documentation.

PE3C0757 REV 1.1 4
