Push-On SMP Female to Push-On SMP Female
Cable Using PE-SR405FL Coax

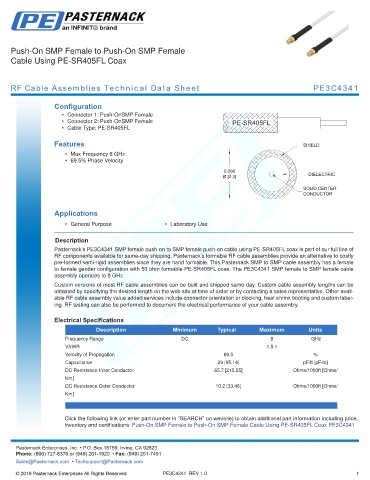

RF Cable Assemblies Technical Data Sheet PE3C4341

Configuration
• Connector 1: Push-OnSMP Female
• Connector 2: Push-OnSMP Female
• Cable Type: PE-SR405FL

Features
• Max Frequency 8 GHz
• 69.5% Phase Velocity

Applications

• General Purpose • Laboratory Use
.
Description
Pasternack’s PE3C4341 SMP female push-on to SMP female push-on cable using PE-SR405FL coax is part of our full line of
RF components available for same-day shipping. Pasternack’s formable RF cable assemblies provide an alternative to costly
pre-formed semi-rigid assemblies since they are hand formable. This Pasternack SMP to SMP cable assembly has a female
to female gender configuration with 50 ohm formable PE-SR405FL coax. The PE3C4341 SMP female to SMP female cable
assembly operates to 8 GHz.
Custom versions of most RF cable assemblies can be built and shipped same day. Custom cable assembly lengths can be
obtained by specifying the desired length on the web site at time of order or by contacting a sales representative. Other avail-
able RF cable assembly value added services include connector orientation or clocking, heat shrink booting and custom label-
ing. RF testing can also be performed to document the electrical performance of your cable assembly.

Electrical Specifications
Description Minimum Typical Maximum Units
Frequency Range DC 8 GHz
VSWR 1.5:1
Velocity of Propagation 69.5 %
Capacitance 29 [95.14] pF/ft [pF/m]
DC Resistance Inner Conductor 65.7 [215.55] Ohms/1000ft [Ohms/
Km]
DC Resistance Outer Conductor 10.2 [33.46] Ohms/1000ft [Ohms/
Km]
.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: Push-On SMP Female to Push-On SMP Female Cable Using PE-SR405FL Coax PE3C4341
-
Pasternack does not make
any representation or warranty regarding the suitability of the part described herein for any particular purpose, and Pasternack does not assume any liability arising out of the use of any part or documentation.

PE3C4341 REV 1.0 1
