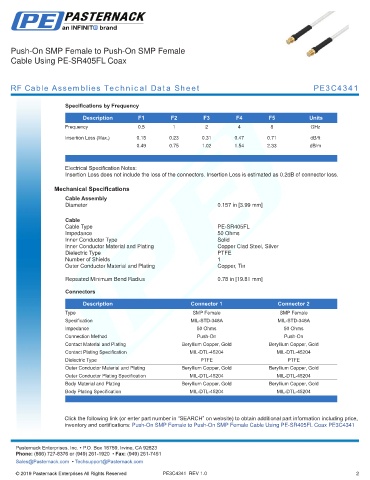

Push-On SMP Female to Push-On SMP Female
Cable Using PE-SR405FL Coax

RF Cable Assemblies Technical Data Sheet PE3C4341

Specifications by Frequency

Description F1 F2 F3 F4 F5 Units
Frequency 0.5 1 2 4 8 GHz
Insertion Loss (Max.) 0.15 0.23 0.31 0.47 0.71 dB/ft
0.49 0.75 1.02 1.54 2.33 dB/m

.
Electrical Specification Notes:
Insertion Loss does not include the loss of the connectors. Insertion Loss is estimated as 0.2dB of connector loss.

Mechanical Specifications
Cable Assembly
Diameter 0.157 in [3.99 mm]
.
Cable
Cable Type PE-SR405FL
Impedance 50 Ohms
Inner Conductor Type Solid
Inner Conductor Material and Plating Copper Clad Steel, Silver
Dielectric Type PTFE
Number of Shields 1
Outer Conductor Material and Plating Copper, Tin
.
Repeated Minimum Bend Radius 0.78 in [19.81 mm]
Connectors

Description Connector 1 Connector 2
Type SMP Female SMP Female
Specification MIL-STD-348A MIL-STD-348A
Impedance 50 Ohms 50 Ohms
Connection Method Push-On Push-On
Contact Material and Plating Beryllium Copper, Gold Beryllium Copper, Gold
Contact Plating Specification MIL-DTL-45204 MIL-DTL-45204
Dielectric Type PTFE PTFE
Outer Conductor Material and Plating Beryllium Copper, Gold Beryllium Copper, Gold
Outer Conductor Plating Specification MIL-DTL-45204 MIL-DTL-45204
Body Material and Plating Beryllium Copper, Gold Beryllium Copper, Gold
Body Plating Specification MIL-DTL-45204 MIL-DTL-45204
.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: Push-On SMP Female to Push-On SMP Female Cable Using PE-SR405FL Coax PE3C4341
-
Pasternack does not make
any representation or warranty regarding the suitability of the part described herein for any particular purpose, and Pasternack does not assume any liability arising out of the use of any part or documentation.

PE3C4341 REV 1.0 2
