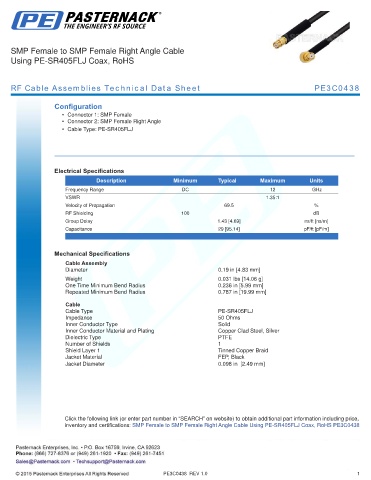

SMP Female to SMP Female Right Angle Cable
Using PE-SR405FLJ Coax, RoHS

RF Cable Assemblies Technical Data Sheet PE3C0438

Configuration
• Connector 1: SMP Female
• Connector 2: SMP Female Right Angle
• Cable Type: PE-SR405FLJ

.
Electrical Specifications
Description Minimum Typical Maximum Units
Frequency Range DC 12 GHz
VSWR 1.35:1
Velocity of Propagation 69.5 %
RF Shielding 100 dB
Group Delay 1.43 [4.69] ns/ft [ns/m]
Capacitance 29 [95.14] pF/ft [pF/m]
.

Mechanical Specifications
Cable Assembly
Diameter 0.19 in [4.83 mm]
.
Weight 0.031 lbs [14.06 g]
One Time Minimum Bend Radius 0.236 in [5.99 mm]
Repeated Minimum Bend Radius 0.787 in [19.99 mm]
Cable
Cable Type PE-SR405FLJ
Impedance 50 Ohms
Inner Conductor Type Solid
Inner Conductor Material and Plating Copper Clad Steel, Silver
Dielectric Type PTFE
Number of Shields 1
Shield Layer 1 Tinned Copper Braid
Jacket Material FEP, Black
Jacket Diameter 0.098 in [2.49 mm]

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: SMP Female to SMP Female Right Angle Cable Using PE-SR405FLJ Coax, RoHS PE3C0438

PE3C0438 REV 1.0 1
