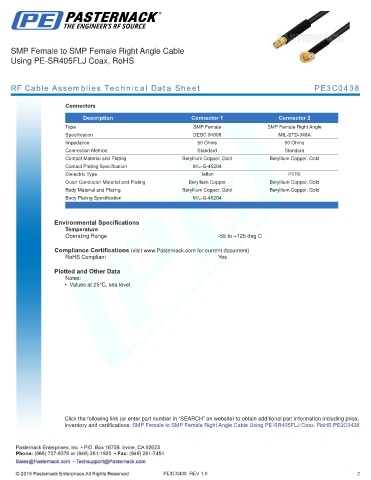

SMP Female to SMP Female Right Angle Cable
Using PE-SR405FLJ Coax, RoHS

RF Cable Assemblies Technical Data Sheet PE3C0438

Connectors

Description Connector 1 Connector 2
Type SMP Female SMP Female Right Angle
Specification DESC 94008 MIL-STD-348A
Impedance 50 Ohms 50 Ohms
Connection Method Standard Standard
Contact Material and Plating Beryllium Copper, Gold Beryllium Copper, Gold
Contact Plating Specification MIL-G-45204
Dielectric Type Teflon PTFE
Outer Conductor Material and Plating Beryllium Copper Beryllium Copper, Gold
Body Material and Plating Beryllium Copper, Gold Beryllium Copper, Gold
Body Plating Specification MIL-G-45204
.

Environmental Specifications
Temperature
Operating Range -55 to +125 deg C

Compliance Certifications (visit www.Pasternack.com for current document)
RoHS Compliant Yes

Plotted and Other Data
Notes:
• Values at 25°C, sea level.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: SMP Female to SMP Female Right Angle Cable Using PE-SR405FLJ Coax, RoHS PE3C0438

PE3C0438 REV 1.0 2
