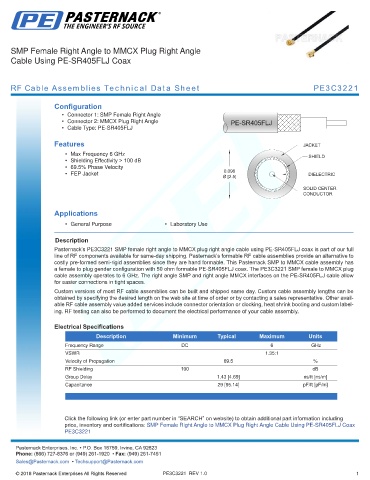

SMP Female Right Angle to MMCX Plug Right Angle
Cable Using PE-SR405FLJ Coax

RF Cable Assemblies Technical Data Sheet PE3C3221

Configuration
• Connector 1: SMP Female Right Angle
• Connector 2: MMCX Plug Right Angle
• Cable Type: PE-SR405FLJ

Features
• Max Frequency 6 GHz
• Shielding Effectivity > 100 dB
• 69.5% Phase Velocity
• FEP Jacket

Applications

• General Purpose • Laboratory Use
.
Description
Pasternack’s PE3C3221 SMP female right angle to MMCX plug right angle cable using PE-SR405FLJ coax is part of our full
line of RF components available for same-day shipping. Pasternack’s formable RF cable assemblies provide an alternative to
costly pre-formed semi-rigid assemblies since they are hand formable. This Pasternack SMP to MMCX cable assembly has
a female to plug gender configuration with 50 ohm formable PE-SR405FLJ coax. The PE3C3221 SMP female to MMCX plug
cable assembly operates to 6 GHz. The right angle SMP and right angle MMCX interfaces on the PE-SR405FLJ cable allow
for easier connections in tight spaces.
Custom versions of most RF cable assemblies can be built and shipped same day. Custom cable assembly lengths can be
obtained by specifying the desired length on the web site at time of order or by contacting a sales representative. Other avail-
able RF cable assembly value added services include connector orientation or clocking, heat shrink booting and custom label-
ing. RF testing can also be performed to document the electrical performance of your cable assembly.
Electrical Specifications
Description Minimum Typical Maximum Units
Frequency Range DC 6 GHz
VSWR 1.35:1
Velocity of Propagation 69.5 %
RF Shielding 100 dB
Group Delay 1.43 [4.69] ns/ft [ns/m]
Capacitance 29 [95.14] pF/ft [pF/m]
.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including
price, inventory and certifications: SMP Female Right Angle to MMCX Plug Right Angle Cable Using PE-SR405FLJ Coax
PE3C3221 Pasternack does not make -
any representation or warranty regarding the suitability of the part described herein for any particular purpose, and Pasternack does not assume any liability arising out of the use of any part or documentation.
