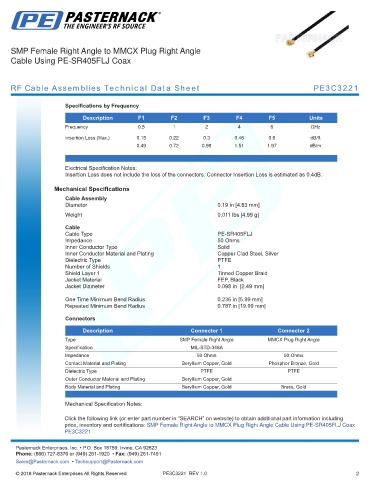

SMP Female Right Angle to MMCX Plug Right Angle
Cable Using PE-SR405FLJ Coax

RF Cable Assemblies Technical Data Sheet PE3C3221

Specifications by Frequency

Description F1 F2 F3 F4 F5 Units
Frequency 0.5 1 2 4 6 GHz
Insertion Loss (Max.) 0.15 0.22 0.3 0.46 0.6 dB/ft
0.49 0.72 0.98 1.51 1.97 dB/m

.
Electrical Specification Notes:
Insertion Loss does not include the loss of the connectors. Connector Insertion Loss is estimated as 0.4dB.

Mechanical Specifications
Cable Assembly
Diameter 0.19 in [4.83 mm]
.
Weight 0.011 lbs [4.99 g]
Cable
Cable Type PE-SR405FLJ
Impedance 50 Ohms
Inner Conductor Type Solid
Inner Conductor Material and Plating Copper Clad Steel, Silver
Dielectric Type PTFE
Number of Shields 1
Shield Layer 1 Tinned Copper Braid
Jacket Material FEP, Black
Jacket Diameter 0.098 in [2.49 mm]
.
One Time Minimum Bend Radius 0.236 in [5.99 mm]
Repeated Minimum Bend Radius 0.787 in [19.99 mm]

Connectors
Description Connector 1 Connector 2
Type SMP Female Right Angle MMCX Plug Right Angle
Specification MIL-STD-348A
Impedance 50 Ohms 50 Ohms
Contact Material and Plating Beryllium Copper, Gold Phosphor Bronze, Gold
Dielectric Type PTFE PTFE
Outer Conductor Material and Plating Beryllium Copper, Gold
Body Material and Plating Beryllium Copper, Gold Brass, Gold
.
Mechanical Specification Notes:

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including
price, inventory and certifications: SMP Female Right Angle to MMCX Plug Right Angle Cable Using PE-SR405FLJ Coax
PE3C3221 Pasternack does not make -
any representation or warranty regarding the suitability of the part described herein for any particular purpose, and Pasternack does not assume any liability arising out of the use of any part or documentation.

PE3C3221 REV 1.0 2
