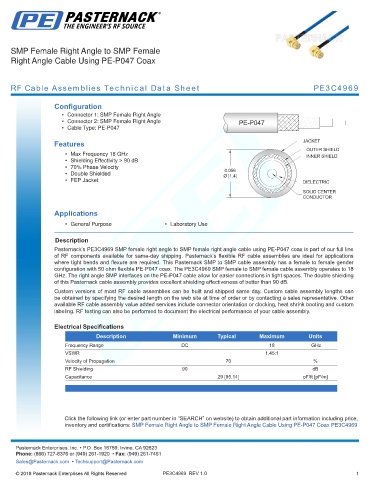

SMP Female Right Angle to SMP Female
Right Angle Cable Using PE-P047 Coax

RF Cable Assemblies Technical Data Sheet PE3C4969

Configuration
• Connector 1: SMP Female Right Angle
• Connector 2: SMP Female Right Angle
• Cable Type: PE-P047

Features
• Max Frequency 18 GHz
• Shielding Effectivity > 90 dB
• 70% Phase Velocity
• Double Shielded
• FEP Jacket

Applications

• General Purpose • Laboratory Use
.
Description
Pasternack’s PE3C4969 SMP female right angle to SMP female right angle cable using PE-P047 coax is part of our full line
of RF components available for same-day shipping. Pasternack’s flexible RF cable assemblies are ideal for applications
where tight bends and flexure are required. This Pasternack SMP to SMP cable assembly has a female to female gender
configuration with 50 ohm flexible PE-P047 coax. The PE3C4969 SMP female to SMP female cable assembly operates to 18
GHz. The right angle SMP interfaces on the PE-P047 cable allow for easier connections in tight spaces. The double shielding
of this Pasternack cable assembly provides excellent shielding effectiveness of better than 90 dB.
Custom versions of most RF cable assemblies can be built and shipped same day. Custom cable assembly lengths can
be obtained by specifying the desired length on the web site at time of order or by contacting a sales representative. Other
available RF cable assembly value added services include connector orientation or clocking, heat shrink booting and custom
labeling. RF testing can also be performed to document the electrical performance of your cable assembly.

Electrical Specifications
Description Minimum Typical Maximum Units
Frequency Range DC 18 GHz
VSWR 1.45:1
Velocity of Propagation 70 %
RF Shielding 90 dB
Capacitance 29 [95.14] pF/ft [pF/m]

.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: SMP Female Right Angle to SMP Female Right Angle Cable Using PE-P047 Coax PE3C4969
-
Pasternack does not make
any representation or warranty regarding the suitability of the part described herein for any particular purpose, and Pasternack does not assume any liability arising out of the use of any part or documentation.

PE3C4969 REV 1.0 1
