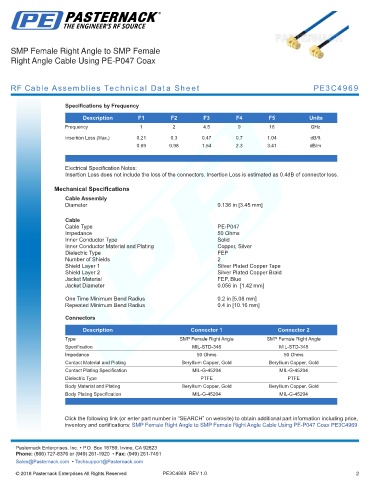

SMP Female Right Angle to SMP Female
Right Angle Cable Using PE-P047 Coax

RF Cable Assemblies Technical Data Sheet PE3C4969

Specifications by Frequency

Description F1 F2 F3 F4 F5 Units
Frequency 1 2 4.5 9 18 GHz
Insertion Loss (Max.) 0.21 0.3 0.47 0.7 1.04 dB/ft
0.69 0.98 1.54 2.3 3.41 dB/m

.
Electrical Specification Notes:
Insertion Loss does not include the loss of the connectors. Insertion Loss is estimated as 0.4dB of connector loss.

Mechanical Specifications
Cable Assembly
Diameter 0.136 in [3.45 mm]
.
Cable
Cable Type PE-P047
Impedance 50 Ohms
Inner Conductor Type Solid
Inner Conductor Material and Plating Copper, Silver
Dielectric Type FEP
Number of Shields 2
Shield Layer 1 Silver Plated Copper Tape
Shield Layer 2 Silver Plated Copper Braid
Jacket Material FEP, Blue
Jacket Diameter 0.056 in [1.42 mm]
.
One Time Minimum Bend Radius 0.2 in [5.08 mm]
Repeated Minimum Bend Radius 0.4 in [10.16 mm]

Connectors
Description Connector 1 Connector 2
Type SMP Female Right Angle SMP Female Right Angle
Specification MIL-STD-348 MIL-STD-348
Impedance 50 Ohms 50 Ohms
Contact Material and Plating Beryllium Copper, Gold Beryllium Copper, Gold
Contact Plating Specification MIL-G-45204 MIL-G-45204
Dielectric Type PTFE PTFE
Body Material and Plating Beryllium Copper, Gold Beryllium Copper, Gold
Body Plating Specification MIL-G-45204 MIL-G-45204
.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: SMP Female Right Angle to SMP Female Right Angle Cable Using PE-P047 Coax PE3C4969
-
Pasternack does not make
any representation or warranty regarding the suitability of the part described herein for any particular purpose, and Pasternack does not assume any liability arising out of the use of any part or documentation.

PE3C4969 REV 1.0 2
