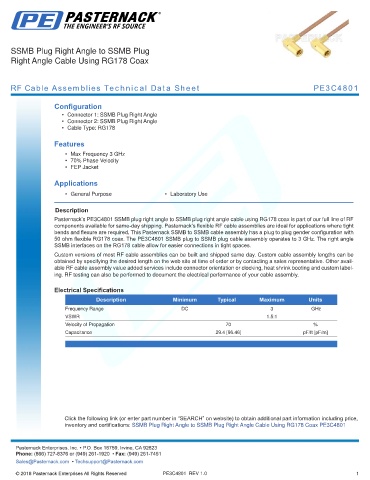

SSMB Plug Right Angle to SSMB Plug
Right Angle Cable Using RG178 Coax

RF Cable Assemblies Technical Data Sheet PE3C4801

Configuration
• Connector 1: SSMB Plug Right Angle
• Connector 2: SSMB Plug Right Angle
• Cable Type: RG178

Features
• Max Frequency 3 GHz
• 70% Phase Velocity
• FEP Jacket

Applications
• General Purpose • Laboratory Use
.
Description
Pasternack’s PE3C4801 SSMB plug right angle to SSMB plug right angle cable using RG178 coax is part of our full line of RF
components available for same-day shipping. Pasternack’s flexible RF cable assemblies are ideal for applications where tight
bends and flexure are required. This Pasternack SSMB to SSMB cable assembly has a plug to plug gender configuration with
50 ohm flexible RG178 coax. The PE3C4801 SSMB plug to SSMB plug cable assembly operates to 3 GHz. The right angle
SSMB interfaces on the RG178 cable allow for easier connections in tight spaces.
Custom versions of most RF cable assemblies can be built and shipped same day. Custom cable assembly lengths can be
obtained by specifying the desired length on the web site at time of order or by contacting a sales representative. Other avail-
able RF cable assembly value added services include connector orientation or clocking, heat shrink booting and custom label-
ing. RF testing can also be performed to document the electrical performance of your cable assembly.

Electrical Specifications
Description Minimum Typical Maximum Units
Frequency Range DC 3 GHz
VSWR 1.5:1
Velocity of Propagation 70 %
Capacitance 29.4 [96.46] pF/ft [pF/m]
.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: SSMB Plug Right Angle to SSMB Plug Right Angle Cable Using RG178 Coax PE3C4801
-
Pasternack does not make
any representation or warranty regarding the suitability of the part described herein for any particular purpose, and Pasternack does not assume any liability arising out of the use of any part or documentation.

PE3C4801 REV 1.0 1
