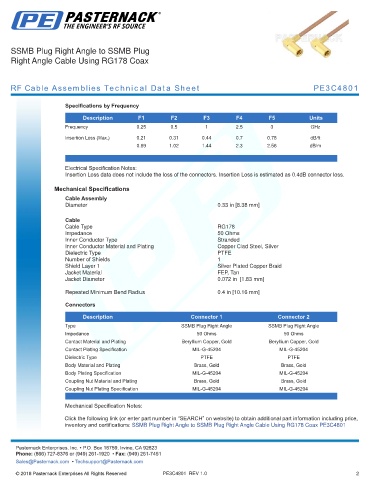

SSMB Plug Right Angle to SSMB Plug
Right Angle Cable Using RG178 Coax

RF Cable Assemblies Technical Data Sheet PE3C4801

Specifications by Frequency

Description F1 F2 F3 F4 F5 Units
Frequency 0.25 0.5 1 2.5 3 GHz
Insertion Loss (Max.) 0.21 0.31 0.44 0.7 0.78 dB/ft
0.69 1.02 1.44 2.3 2.56 dB/m

.
Electrical Specification Notes:
Insertion Loss data does not include the loss of the connectors. Insertion Loss is estimated as 0.4dB connector loss.

Mechanical Specifications
Cable Assembly
Diameter 0.33 in [8.38 mm]
.
Cable
Cable Type RG178
Impedance 50 Ohms
Inner Conductor Type Stranded
Inner Conductor Material and Plating Copper Clad Steel, Silver
Dielectric Type PTFE
Number of Shields 1
Shield Layer 1 Silver Plated Copper Braid
Jacket Material FEP, Tan
Jacket Diameter 0.072 in [1.83 mm]
.
Repeated Minimum Bend Radius 0.4 in [10.16 mm]
Connectors
Description Connector 1 Connector 2
Type SSMB Plug Right Angle SSMB Plug Right Angle
Impedance 50 Ohms 50 Ohms
Contact Material and Plating Beryllium Copper, Gold Beryllium Copper, Gold
Contact Plating Specification MIL-G-45204 MIL-G-45204
Dielectric Type PTFE PTFE
Body Material and Plating Brass, Gold Brass, Gold
Body Plating Specification MIL-G-45204 MIL-G-45204
Coupling Nut Material and Plating Brass, Gold Brass, Gold
Coupling Nut Plating Specification MIL-G-45204 MIL-G-45204
.
Mechanical Specification Notes:

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: SSMB Plug Right Angle to SSMB Plug Right Angle Cable Using RG178 Coax PE3C4801
-
Pasternack does not make
any representation or warranty regarding the suitability of the part described herein for any particular purpose, and Pasternack does not assume any liability arising out of the use of any part or documentation.

PE3C4801 REV 1.0 2
