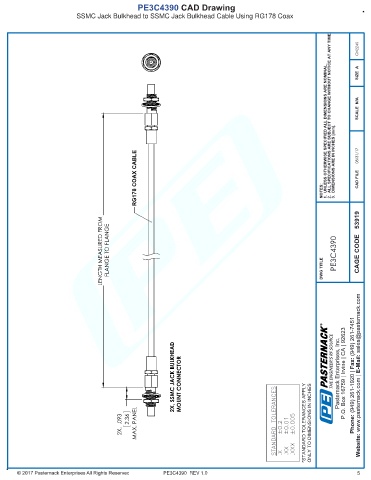

PE3C4390 CAD Drawing
SSMC Jack Bulkhead to SSMC Jack Bulkhead Cable Using RG178 Coax

ALL SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE AT ANY TIME.
CN2245

UNLESS OTHERWISE SPECIFIED ALL DIMENSIONS ARE NOMINAL.
SIZE A

SCALE N/A

RG178 COAX CABLE NOTES: 1. 2. DIMENSIONS ARE IN INCHES [mm]. 3. 08/31/17 CAD FILE

LENGTH MEASURED FROM FLANGE TO FLANGE DWG TITLE PE3C4390 CAGE CODE 53919

R

2X, SSMC JACK BULKHEAD MOUNT CONNECTOR THE ENGINEER'S RF SOURCE Pasternack Enterprises, Inc. P.O. Box 16759 | Irvine | CA | 92623 Phone: (949) 261-1920 | Fax: (949) 261-7451 Website: www.pasternack.com | E-Mail: sales@pasternack.com

.093 2.36 MAX. PANEL STANDARD TOLERANCES *STANDARD TOLERANCES APPLY ONLY TO DIMENSIONS IN INCHES

2X, .X ±0.2 .XX ±0.01 .XXX ±0.005

PE3C4390 REV 1.0 5
