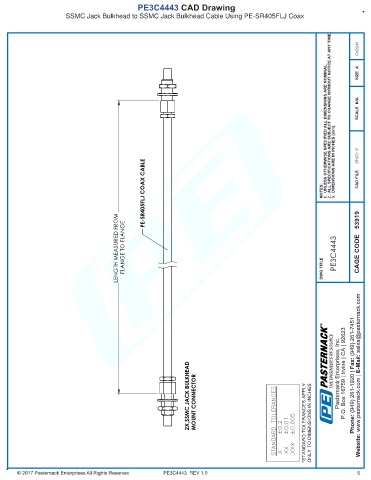

PE3C4443 CAD Drawing
SSMC Jack Bulkhead to SSMC Jack Bulkhead Cable Using PE-SR405FLJ Coax
ALL SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE AT ANY TIME.
CN2245
UNLESS OTHERWISE SPECIFIED ALL DIMENSIONS ARE NOMINAL.
SIZE A
SCALE N/A
PE-SR405FLJ COAX CABLE NOTES: 1. 2. DIMENSIONS ARE IN INCHES [mm]. 3. 09/07/17 CAD FILE
LENGTH MEASURED FROM FLANGE TO FLANGE DWG TITLE PE3C4443 CAGE CODE 53919
R
2X,SSMC JACK BULKHEAD MOUNT CONNECTOR STANDARD TOLERANCES *STANDARD TOLERANCES APPLY ONLY TO DIMENSIONS IN INCHES THE ENGINEER'S RF SOURCE Pasternack Enterprises, Inc. P.O. Box 16759 | Irvine | CA | 92623 Phone: (949) 261-1920 | Fax: (949) 261-7451 Website: www.pasternack.com | E-Mail: sales@pasternack.com
PE3C4443 REV 1.0 .X ±0.2 .XX ±0.01 .XXX ±0.005 5
