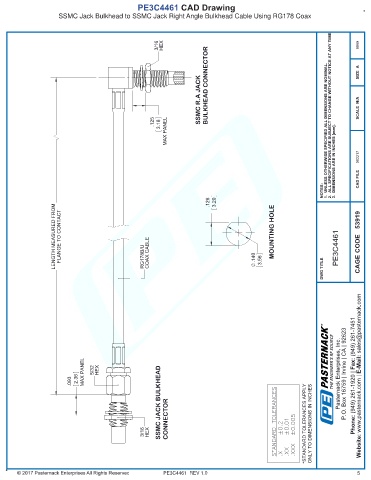

PE3C4461 CAD Drawing
SSMC Jack Bulkhead to SSMC Jack Right Angle Bulkhead Cable Using RG178 Coax

3/16 HEX 9999

SSMC R.A JACK BULKHEAD CONNECTOR SIZE A SCALE N/A

.125 3.18 ALL SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE AT ANY TIME.
MAX PANEL UNLESS OTHERWISE SPECIFIED ALL DIMENSIONS ARE NOMINAL.
DIMENSIONS ARE IN INCHES [mm]. 082217

NOTES: CAD FILE

.126 3.20 1. 2. 3.
LENGTH MEASURED FROM FLANGE TO CONTACT RG178B/U COAX CABLE .140 3.56 MOUNTING HOLE DWG TITLE PE3C4461 CAGE CODE 53919

R

MAX PANEL 5/32 HEX THE ENGINEER'S RF SOURCE Pasternack Enterprises, Inc. P.O. Box 16759 | Irvine | CA | 92623 Phone: (949) 261-1920 | Fax: (949) 261-7451 Website: www.pasternack.com | E-Mail: sales@pasternack.com
SSMC JACK BULKHEAD

.093 2.36

3/16 HEX CONNECTOR STANDARD TOLERANCES .X ±0.2 .XX ±0.01 .XXX ±0.005 *STANDARD TOLERANCES APPLY ONLY TO DIMENSIONS IN INCHES

PE3C4461 REV 1.0 5
