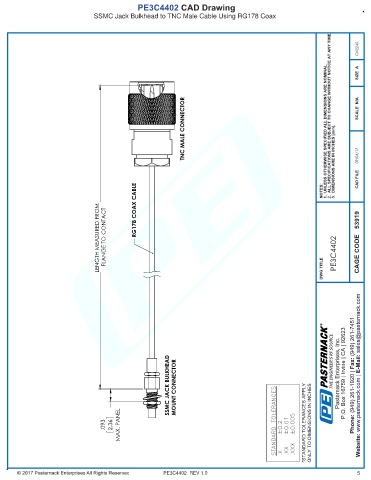

PE3C4402 CAD Drawing
SSMC Jack Bulkhead to TNC Male Cable Using RG178 Coax
CN2245
SIZE A
TNC MALE CONNECTOR UNLESS OTHERWISE SPECIFIED ALL DIMENSIONS ARE NOMINAL. ALL SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE AT ANY TIME. DIMENSIONS ARE IN INCHES [mm]. SCALE N/A 09/04/17 CAD FILE
LENGTH MEASURED FROM FLANGE TO CONTACT RG178 COAX CABLE NOTES: DWG TITLE 1. 2. 3. PE3C4402 CAGE CODE 53919
R
SSMC JACK BULKHEAD MOUNT CONNECTOR THE ENGINEER'S RF SOURCE Pasternack Enterprises, Inc. P.O. Box 16759 | Irvine | CA | 92623 Phone: (949) 261-1920 | Fax: (949) 261-7451 Website: www.pasternack.com | E-Mail: sales@pasternack.com
.093 2.36 MAX. PANEL STANDARD TOLERANCES .X ±0.2 .XX ±0.01 .XXX ±0.005 *STANDARD TOLERANCES APPLY ONLY TO DIMENSIONS IN INCHES
PE3C4402 REV 1.0 5
